Through-Hole Plating System (300x400mm Boards) | COMPACTA 40 2 CU

Price on request


Professional equipment for PTH PCBs production

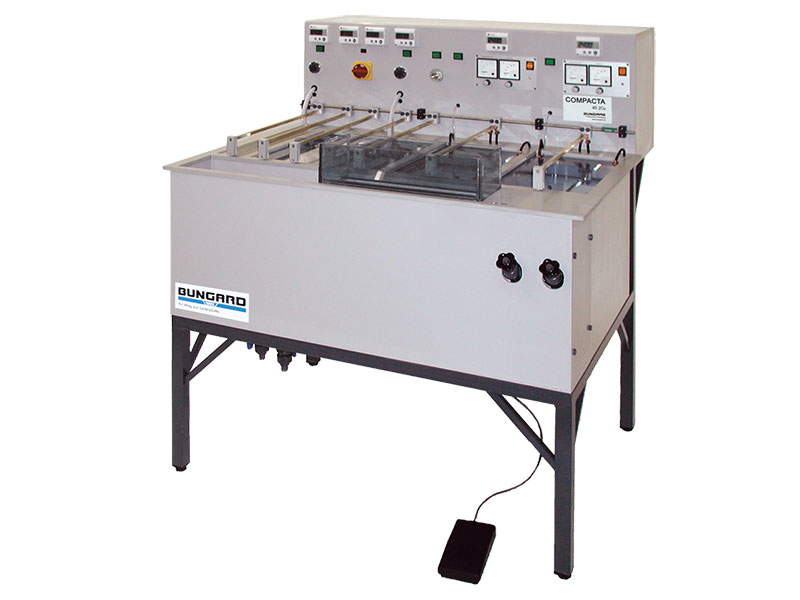

COMPACTA 40 2 CU Through-hole plating system is ideal for the laboratory prototyping and production of double sided PTH PCBs small series. It can take boards up to 300 x 400 mm.
Based on the same principle of construction as COMPACTA 30, this machine is optimized for higher productivity: its greater dimensions plus an integral, second plating bath leads to almost 4 times higher yopur daily throughput.
Available on request: based on the COMPACTA-series we can supply machines for other chemical systems.


  • Dimensions (LxWxH): 1200 x 1180 x 1390 mm
  • Working level: 950mm
  • Heaters: 2 x 800W
  • 5 x Treatment tanks:

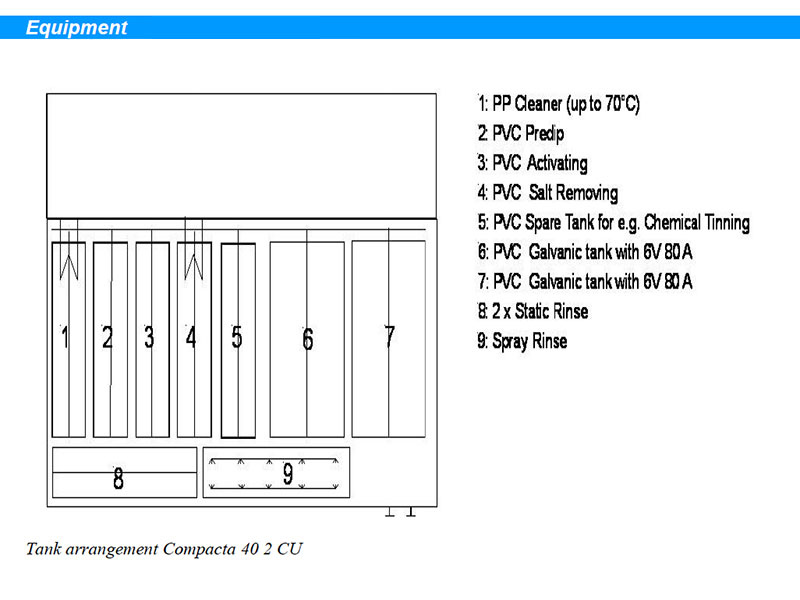

    Dimensions (LxWxD): 500 x 100 x 450 mm
    Capacity: approx. 20L
  • 2 x Galvanic copper tanks:
    Dimensions (LxWxD): 500 x 300 x 450 mm
    Capacity: approx. 60L
  • Rectifier: 2 x 6V, 80A
  • Bath agitation: DC gear motor
  • Power supply: 220V, 50Hz, 6.3A.
Accessories & Options
  • Included in the delivery: Digital timers for each bath
  • Available on request only (NOT included): Chemicals, anodes, anodes holder and board holder.

Additional information

Weight 130 kg
