Through-Hole Plating System (210x300mm Boards) | COMPACTA 30

Price on request


Professional equipment for the production of PTH PCBs

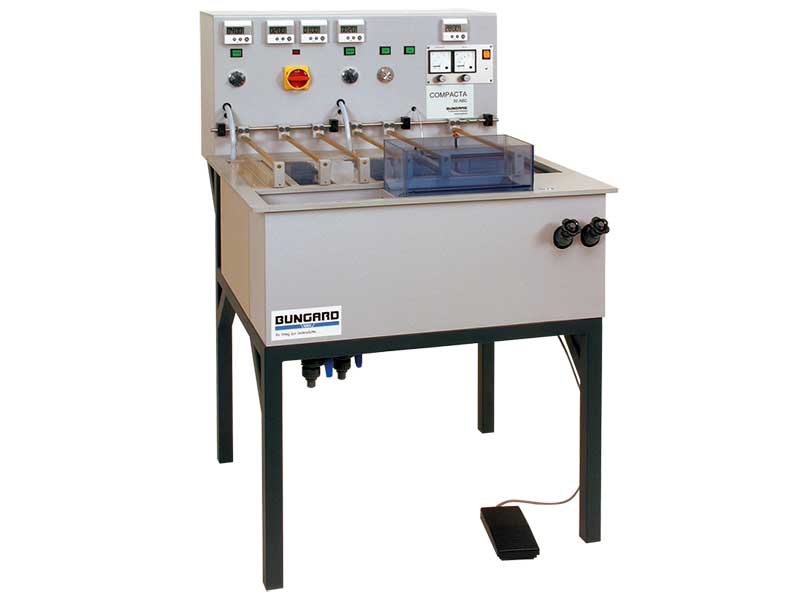

COMPACTA 30 Through-hole plating system is ideal for the laboratory prototyping and production of double sided PTH PCBs small series.
It can take boards up to 210 x 300 mm.

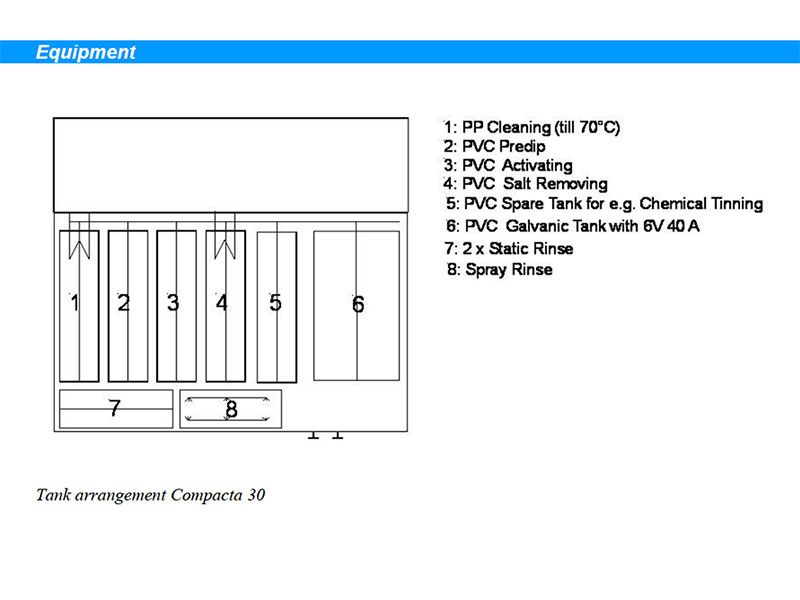

The machine has 5 treatment tanks (cleaning – pre-dip – catalyst – intensifyer – reserve tank) and 1 galvanic plating tank. Two treatment tanks are thermostatically controlled and equipped with a teflon heater.
Board movement in all tanks is performed by a DCgear motor, the speed is stepless variable.
The galvanic plating tank comes with an integrated air injection and a stepless regulated rectifier.
A Voltmeter and an Amperemeter show the current electric values.
Special attention has been dedicated to the integrated rinsing compartment, with a double pre-wash tank for cascade flushing and a spray sink, the latter activated via foot-switch and a magnetic valve.

The Bungard COMPACTA Series machines have been designed to meet the demands of professional direct metallization.
Available variations: COMPACTA 40 2 CU with 2 galvanic plating taks (max. board dimensions: 300×400 mm).
On request: based on the COMPACTA-series we can supply machines for other chemical systems.


  • Dimensions (LxWxH): 880 x 1000 x 1350 mm
  • Working level: 950mm
  • Heaters: 2 x 400W
  • Rectifier: 1 x 6 V, 40 A
  • Bath movement: DC-gear motor
  • Power supply: 220 V, 50 Hz, 6.3 A
  • Treatment tanks:
    Dimensions (LxWxD): 400 x 100 x 300 mm
    Capacity: approx. 10L
  • Galvanic copper tank:
    Dimensions (LxWxD): 400 x 275 x 300 mm
    Capacity: approx. 30L
  • 5 Treatment tanks (cleaning – pre-dip – catalyst – intensifyer – reserve tank)
  • 1 Galvanic plating tank
  • 1 Double-cascade rinse tank
  • 1 Spray rinse tank with magnetic valve, foot switch and flow control.
Accessories / Options
  • Included in the supply: Digital timers for each bath
  • Available on request (NOT included in delivery): Chemicals, anodes, anodes holder and board holder.

Additional information

Weight 80 kg
