Description

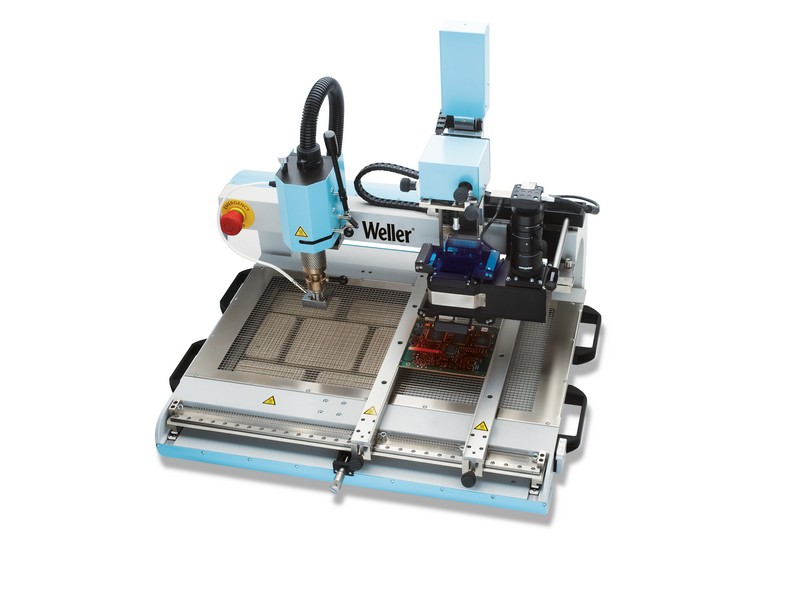

Weller WQB 4000SOPS BGA/SMT repair system

WQB 4000SOPS – BGA/SMT rework system 2300 W / 230 Vac, designed for component placement with placing system camera support.
Weller product no.: T0053370599.

Specifications

• Power consumption: 2300 W
• Nominal power of the top heater: 700 W
• Nominal power of the bottom heater: 1600 W
• Heating output: 2300 W
• Voltage: 230 V / 50-60 Hz
• Recommended component size (mm): 4.5 x 4.5 mm ÷ 50 x 50 mm
• Optical placement system: Splitoptik
• Temperature range of the top heater: 50 – 400 °C –
• Temperature accuracy of the top heater: ± 10 °C (± 18 °F)
• Temperature range of the bottom heater: 50 – 400 °C
• Air consumption: 60 – 100 l/min
• Max. air flow rate: 5 – 50 l/min
• Compressed air: 400 – 600 / 4 – 6 kPa/bar
• Noise level (distance 1 m):  < 69 dB(A)
• Thermocouple port: 3 x Type-K
• Dimensions (WxDxH): 692 x 580 x 680 mm (static)
• Workspace (WxDxH): 1030 x 580 x 680 mm (dynamic)
• Weight: approx. 40 kg
• ESD safe: Yes.
