Description

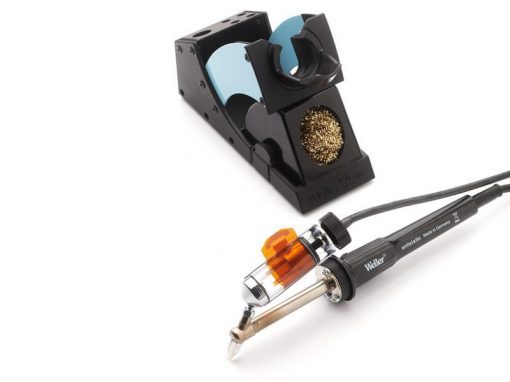

DSX 80 desoldering iron set

DSX 80 SET – DSX 80 desoldering iron set with safety rest, DX 112 and DX 113 nozzles, mantainance set, gasket for glass tube.
Weller product no.: T0051318399N.

Set composition

• DSX 80 (T0051319099N) – Desoldering iron, 80 W, 24 V
• WDH 30 (T0051515299N) – Safety rest with dry cleaner
• DX 112 (T0051314299) – Suction nozzle, external Ø 2.3 mm, internal Ø 1.0 mm, length 25 mm
• DX 113 (T0051314399) – Suction nozzle, external Ø 2.5 mm, internal Ø 1.2 mm, length 25 mm
• Mantainance set (T0051350099N)
• Gaskets for glass tube, 10 pieces (T0051360399N).

Specifications

• Power: 80 W
• Supply voltage: 24 V
• Temperature is electronically controlled
• A micro finger switch on the handle controls the vacuum pump
• Temperature range (depends on tool): 93 – 454 °C
• Heating time (50 – 350 °): approx. 80 seconds

• Tip range: DX
• Control unit: WDD 81V, WDD 161V, WR 2, WR 3M, WR 3ME
• WT compatible: Yes
• ESD safe: Yes.
