Weller WXsmart IoT Power Unit (2 Channels, 300W) | T0053451699

Price excluding taxesPrice including taxes
1.139,05/Pc 1.389,64/Pc

Product available on order

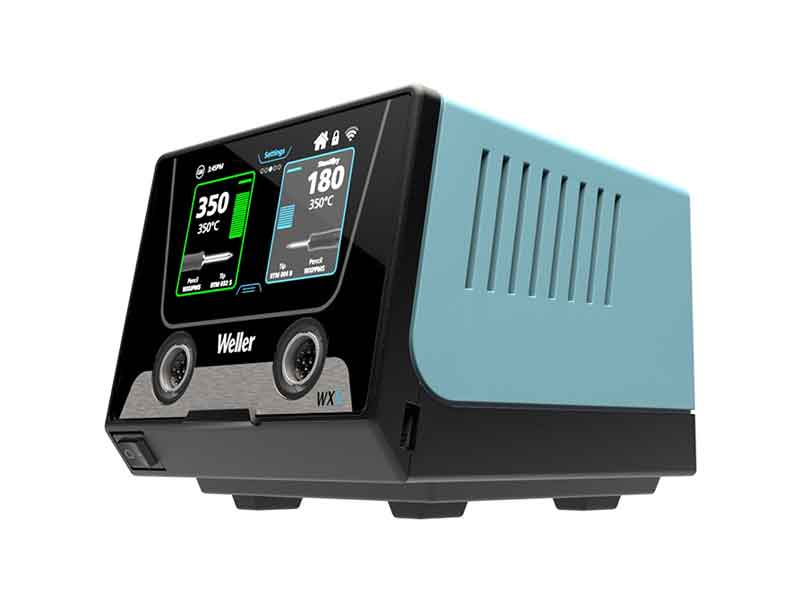

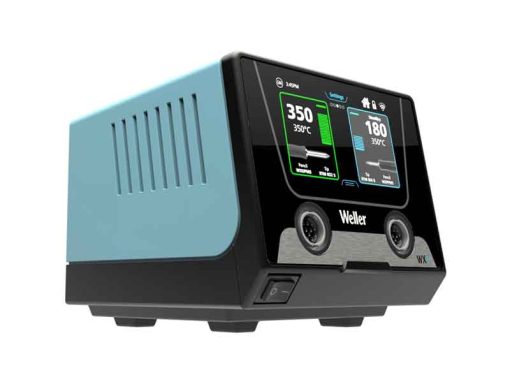

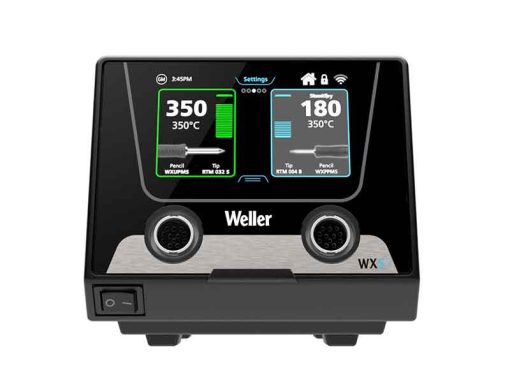

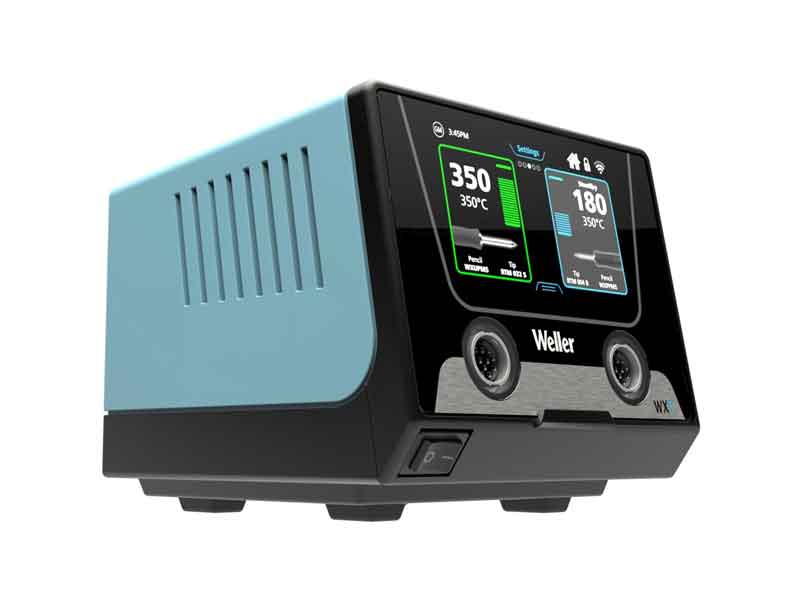

WXS 2-channel power unit

Weller WXsmartPower unit 300 W with 2 channels and ioT connectivity.
All-in-one soldering station, answering all application needs from Pico, Micro, Heavy Duty to Tweezers Soldering, from component size 0402 to 1612 and beyond.
Designed to provide operators full process and tool control through a single device, WXsmart offers complete transparency and full process documentation by leveraging existing IoT standards.

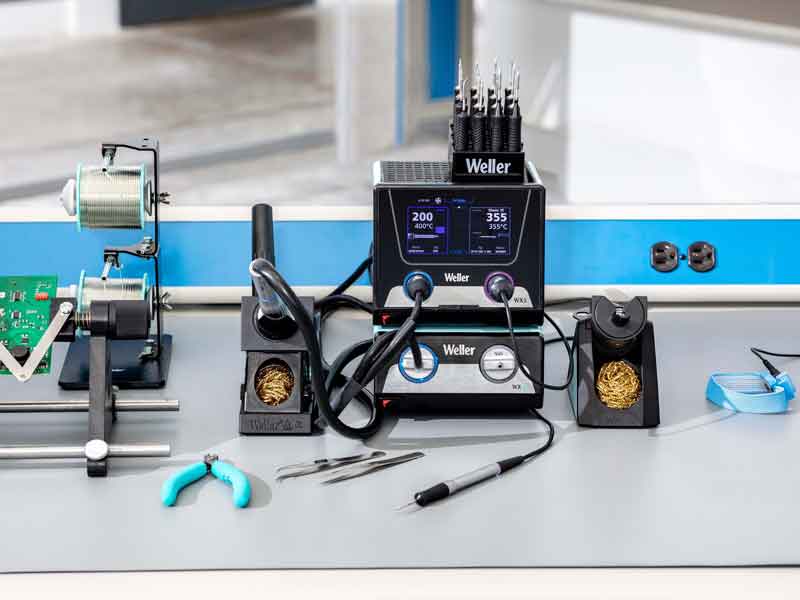

Easily extandable to a full rework station with the WXair Rework Module (NOT included).
Weller product no.: T0053451699.


  • Power: 300 W
  • Voltage: 230 V AC, 50/60 Hz

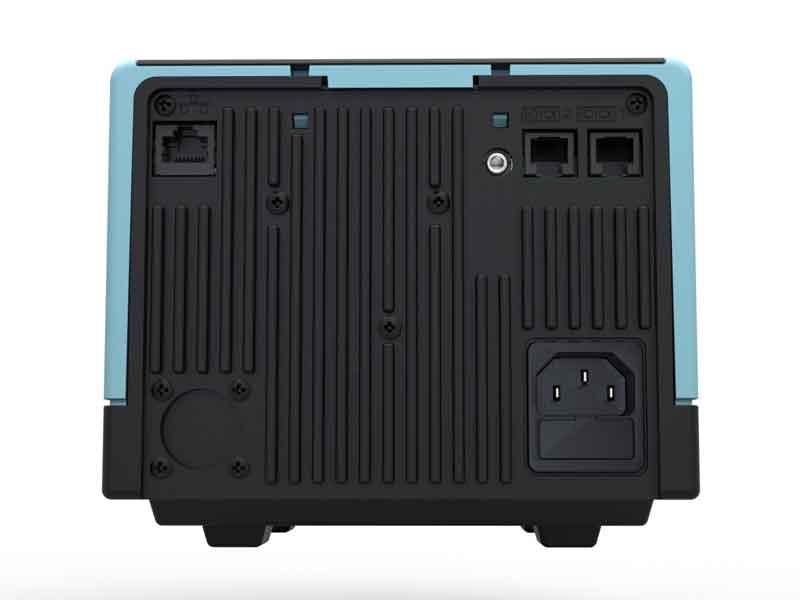

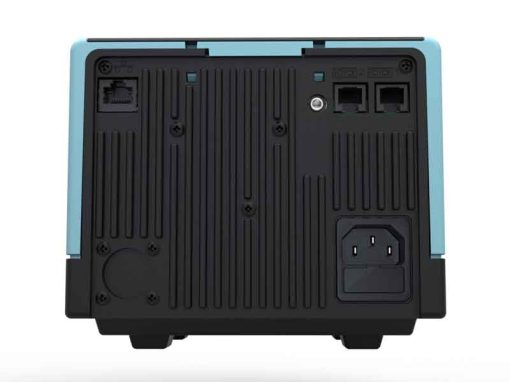

  • Connections: Wi-Fi, LAN, USB, 2 x RS 232
  • MWLAN-Modulation DSSS, OFDM
  • WLAN-Frequency Range: 2412-2472 MHz / 2422-2462 MHz
  • WLAN-Antenna: PCB Antenna, 3.7 dBi
  • WLAN-Max. Output Power: 17.33 dBm
  • WLAN-standard: IEEE 802.11b/g/n (20/40 MHz)
  • Temperature range: 100 – 450 (550) °C
  • Temperature stability: ± 2 °C
  • Temperature accuracy: ± 9 °C
  • Compatible with all WX and WXS tools
  • Fuse: 230 V / T3,15 A

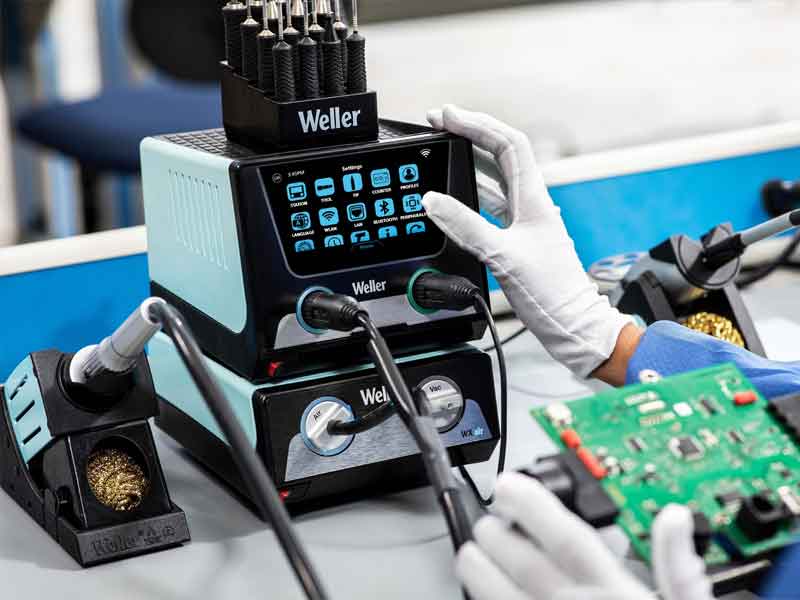

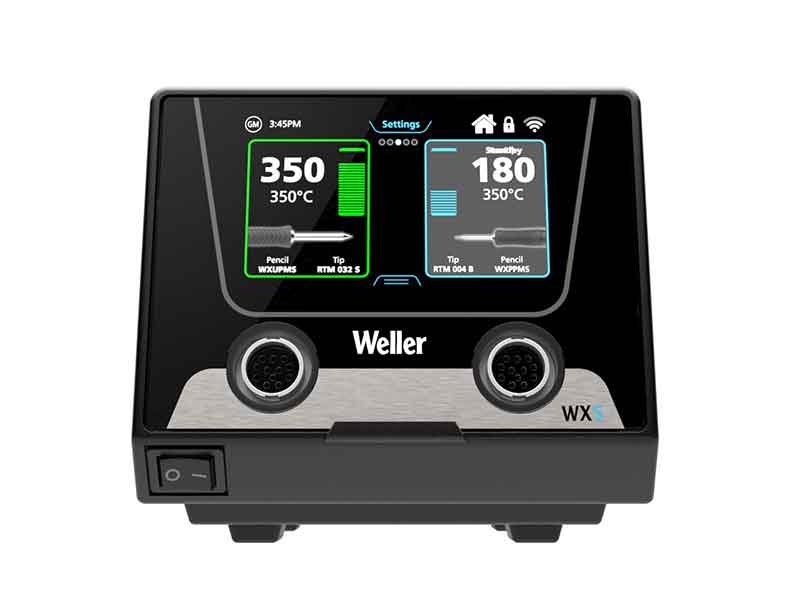

  • The large patented, colour glass 4.3-inch TFT touchscreen is ESD-safe and heat resistant
  • Dimensions (WxDxH): 175 x 154 x 144 mm
  • Weight: approx. 4.78 kg.
