Weller WCU ESD Temperature Measurement Device | T0053450199

Price excluding taxesPrice including taxes
379,05/Pz 462,44/Pz

Available in 20/30 days

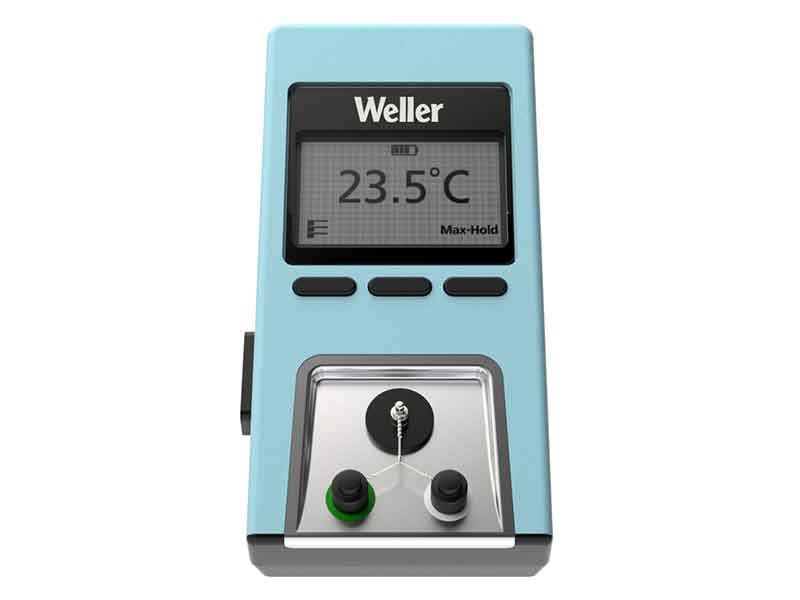

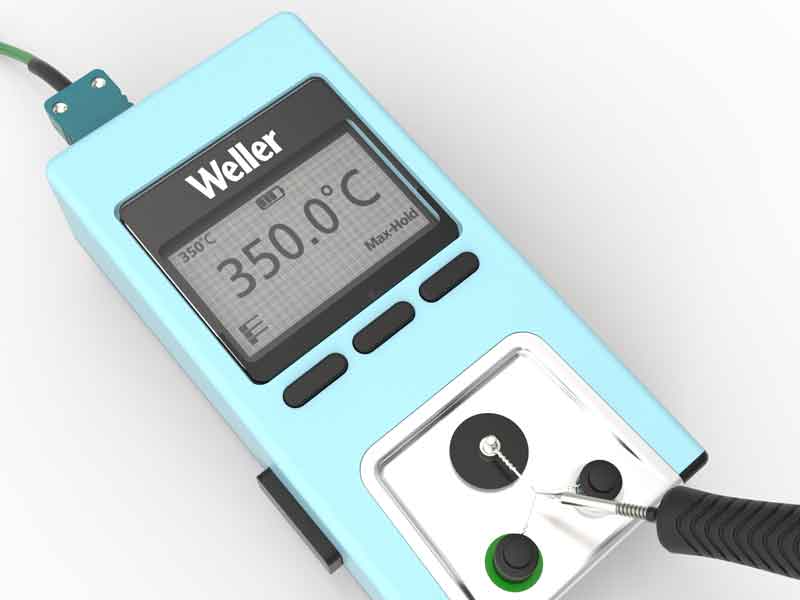

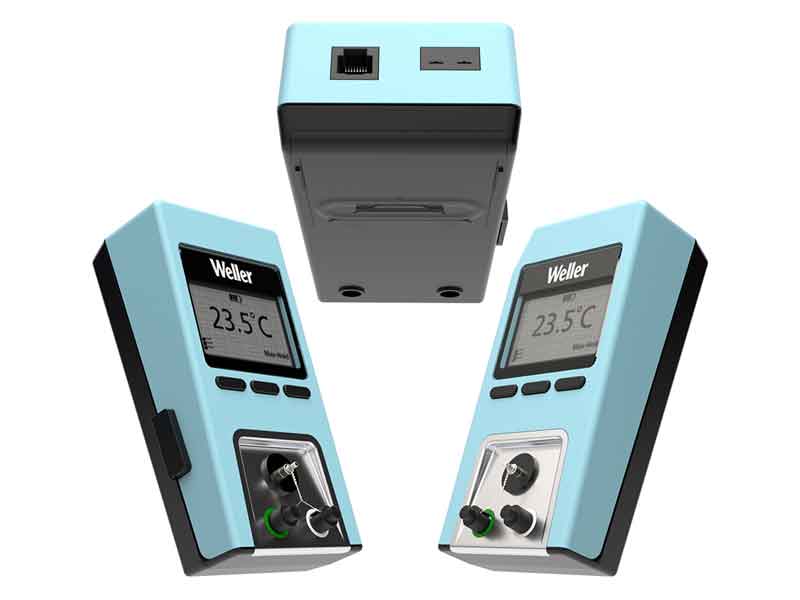

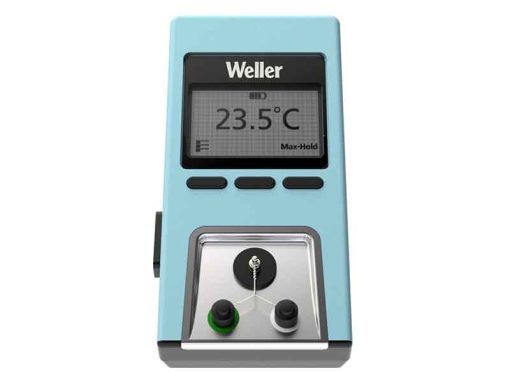

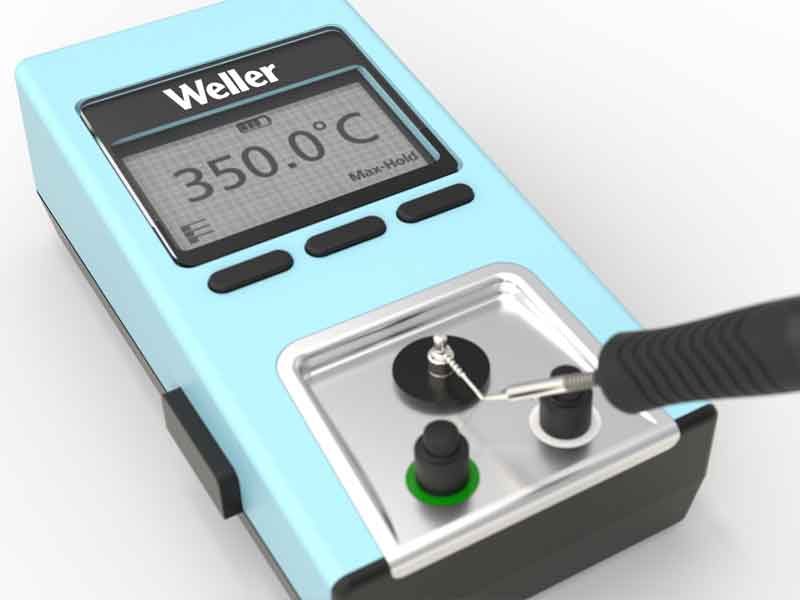

Weller WCU temperature measurement device

WCUESD safe, high precision device for temperature measurement.
This compact, battery-powered device is portable and user-friendly. It comes with a large, non-backlite display.
Designed for users that need to measure fast and easy, while maintaining the highest level of accuracy.
Weller product no.: T0053450199.


  • When simultaneously using thermocross and thermocouple, WCU keeps track of soldering tip and soldering bath temperatures at the same time
  • MAX HOLD function: the display will show/hold the maximum temperature measured
  • Automatically counts the number of tip temperature measurements
  • Digital display for a fast temperature values change between °C and °F
  • The auto turn-off timer saves battery life, shutting down the unit’s power after 10 minutes of inactivity
  • Auto-calibration function (OPTIONAL) – Adding a a RS 232 cable (NOT included – Weller product no.: T0058764710) WCU effortlessly auto-calibrate in less than 10 seconds. This function is available only with: WX 1, WX 2, WXD 2, WXA 2, WXR 3, WXsmart.


  • Included sensor: Thermocross – (Replacement 10 pcs.: T0058771712)
  • Applicable external sensors (NOT included): K (CA) type thermocouple – (Weller thermocouple type K Ø 0.1mm: T0058755782) (Weller thermocouple type K Ø 0.5mm: T0053119099)
  • Temperature measuring range (thermocross): 0 – 400 °C (32 – 752 °F)
  • Temperature measuring range (type-K thermocouple): -150 – +1200 °C (-302 – +2192 °F)
  • Ambient temperature: 0 – 40 °C
  • Air humidity range: Max. 80% of relative air humidity – Without condensation
  • Power supply: Battery 9 V (dry cell alkaline battery recommended)
  • ESD safe: Yes
  • Dimensions (LxWxH): 138 x 73 x 43 mm
  • Weight: 120 / 220 g ca.
