RM 1000 Kit for ESD test
RM 1000-KIT Meter with two 5 pound electrodes for measuring surface resistance, volume resistance and resistance to ground.
The tester is equipped with a built-in temperature and humidity sensor and a USB interface to read out data in a csv format file.
The use of a complete test-kit, instead of a single measuring device with separate electrodes, is recommended.
- Test range: 1 KOhm – 1 TOhm
- Test voltage: 10 V, 100 V
- Automatic adjustment of the measuring voltage
- Adjustment of upper/lower limit-values
- Coloured, graphical TFT touch display
- Dimensions: 115 x 78 x 24 mm
- Power supply: Battery or rechargeable battery (2 x Mignon AA).

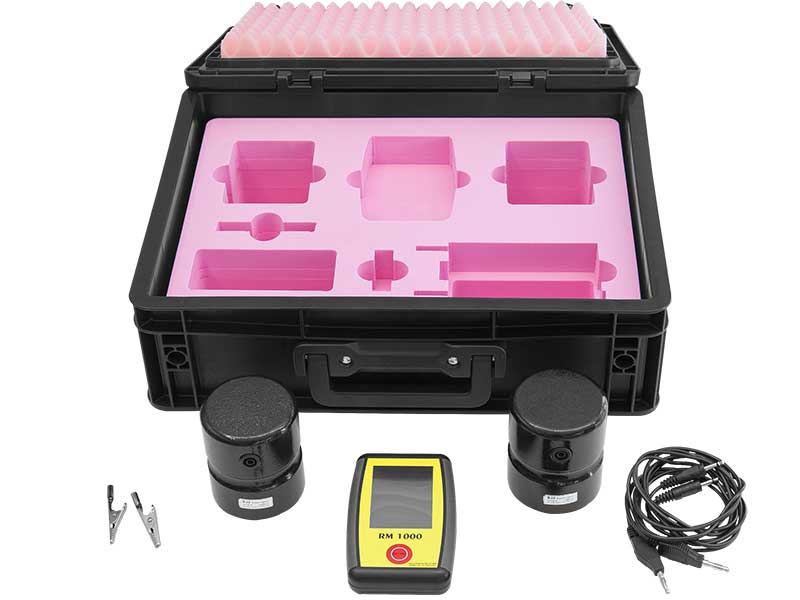

Package contents: Meter with manufacturer’s calibration certificate – Carrying case with lid and foam inserts – 2 x Test leads – 2 x Alligator clips – 2 x Five pound electrodes – User manual (German and English, other languages are available upon request only).
