CHP4 Microscope Camera with Measurements UHD 8MP (SD/HDMI/USB)

Price excluding taxesPrice including taxes
850,50/Pc 1.037,61/Pc

Available in 20/30 days

Product Code: 149320D


UHD CMOS camera with image processing and measuring software

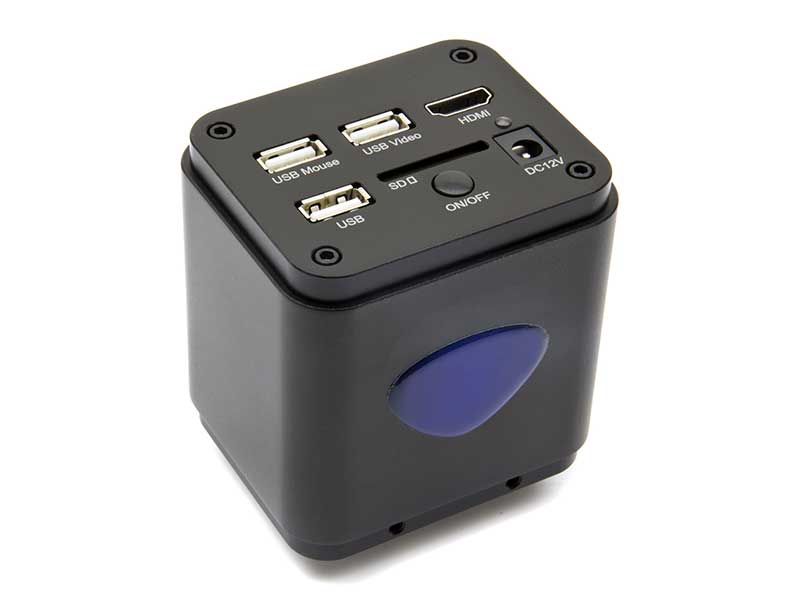

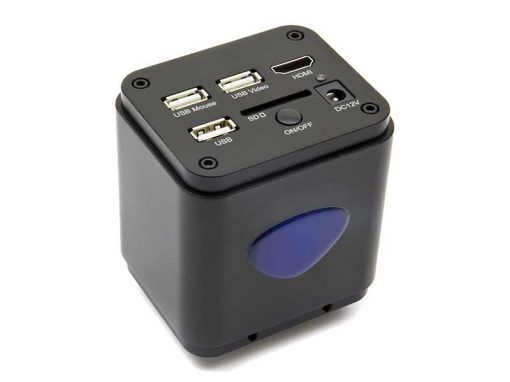

C-HP4C-mount, Ultra HD microscope camera equipped with SD card for image/video internal storage, HDMI and USB output connections, Sony CMOS high-quality sensor, HDMIPRO software.
Very easy to use, it clearly reveals on-screen the sample’s finest details and performs basic measurements.
Multi-brand camera, compatible with the SLX5 trinocular microscope by adding the M-620 C-Mount adapter (NOT included).

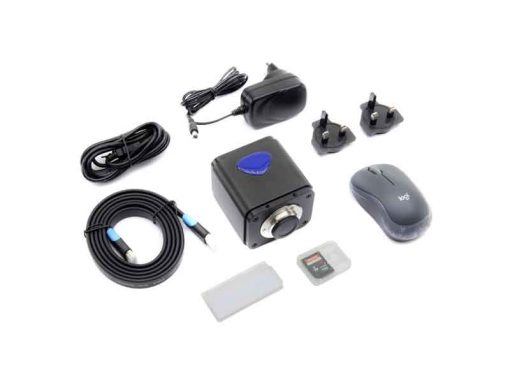

Package content: Camera – Power supply – Calibration slide – USB cable (1.8 m) – HDMI cable (1.5 m) – Wireless mouse – SD card (16 GB).

General specifications

  • Ultra HD 4K 2160p images and videos
  • Top-class, Sony CMOS large sensor ensures beautiful true-to-life colours and high quality images, rich in contrast and detail
  • Image capture / Video recordings on SD card: Yes
  • Output: HDMI, USB 2.0
  • Image processing built-in HDMIPRO software
  • It can be connected to PC at any time and used via the downloadable, free of charge PROVIEW software (Windows), always available to enable the latest updates
  • Does not require software installation for image/video capturing on SD card when in HDMI mode
  • Operating system: Windows

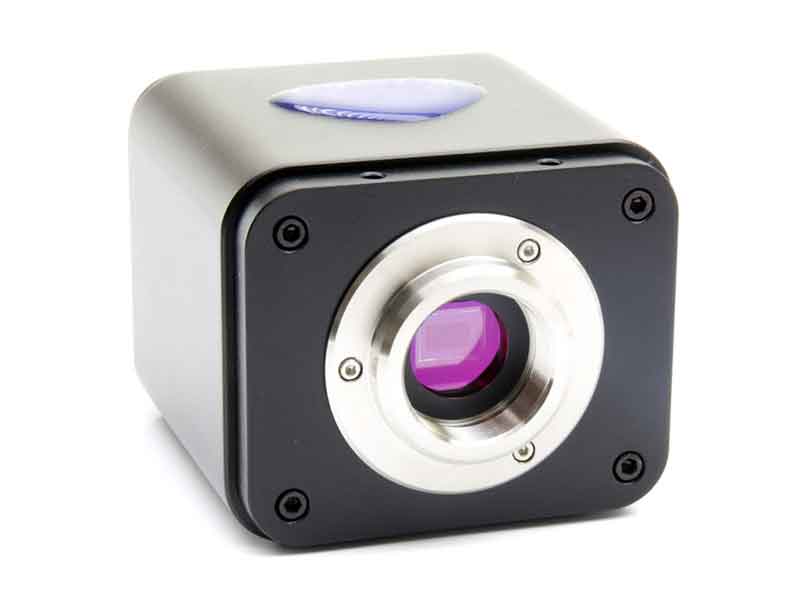

  • C-Mount: Yes – Universal connection to any microscope brand
  • Power plug type: Multiplug (EU, UK, US) with 2.1 mm jack and LED indicator
  • Input voltage 100/240 Vac, 50/60 Hz
  • Output voltage: 12 Vdc, 1000 mA
  • Dimensions: 65 x 78 x 88 mm.


click here to read Sensor

  • Camera resolution (WxH): 3860 x 2160 pixels
  • Mode: Colour
  • Sensor size: 1/1.8″
  • Sensor technology: CMOS
  • Sensor type: SONY
  • Image format: 16/9
  • Pixel size: 2.0 x 2.0 µm
  • Acquisition technology: Rolling shutter
  • Dynamic range: 66 DB
  • G sensitivity: 505 mV at 1/30s
  • Color depth: 1, 4, 8, 24 Bit
  • Exposure time: 0.04 msec – 2 sec
  • Binning: 1 x 1
  • IR filter: Yes
  • IR filter range (IR CUT): 380-650 nm.


click here to read USB

  • PC camera resolution: 8 MP
  • USB standard: USB 2.0
  • Frame rate full resolution: 20@3840×2160 fps.


click here to read HDMI

  • HDMI resolution: 8 MP
  • Frame rate full resolution: 30@3840×2160 fps
  • Live HDMI measurement: Yes
  • Exposure: Auto / Manual
  • White Balance: Auto / Manual / ROI

HDMIPRO software specifications*

click here to read HDMILITE

  • Archiving: Yes
  • Languages: Chinese, English, French, German, Italian, Japanese, Korean, Thai
  • Image acquisition: Multiformat image saving – Multiformat video saving – Continuous automatic exposure – Manual exposure – Colour acquisition – Greyscale acquisition – Numerical focus indicator – White balance (Auto/Manual/ROI) – Image enhancement – Zoom in – Zom out – Image comparison – Browse of images and video – Picture in picture (PIP) – Freeze image – Horizontal flip – Verical Flip
  • Image processing: High Dynamic Range (HDR) – Text Overlay – Ruler Overlay – Arrow Overlay – Measurement Overlay – Grids
  • Measurements: Live measurement – Still image measurement – Select measurement unit – Measuring instruments (Point – Line – Line 3 points – Line vertical 3 points – Angle – Angle 4 points – Parallel lines – Rectangle – Rectangle 3 points – Ellipse – Ellipse 5 points – Circle center + radius – Circle 3 points – 2 Circle center + radius – 2 Circle 3 points – Annulus – Curve – Arc – Polygon – Export to Excel.

* ATTENTION: More functions are available by connecting the camera to a PC on which is installed the free of charge, downloadable PROVIEW software.

Additional information

Weight 0,5 kg
