EUROLUX LED – Vacuum Exposure Unit (Single Sided)

Price excluding taxesPrice including taxes
1.785,00/Pc 2.177,70/Pc

Available in 20/30 days

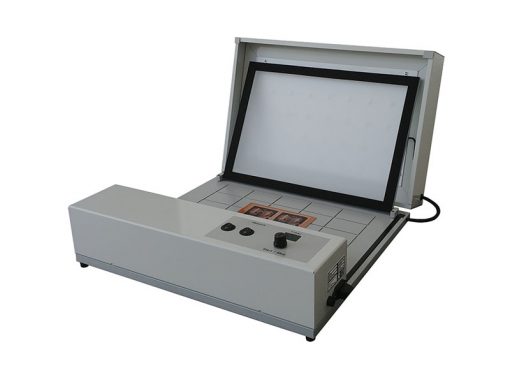

Bungard EUROLUX LED – Vacuum exposure unit

EUROLUX LED – Vacuum exposure unit for single sided contact exposure of presensitized base materials.

Suitable with all photosensitive products with spectral sensitivity in the near UV range (360 – 400 nm).
These are especially positive or negative photo-coated pcbs, printing plates made of nylon, aluminum, steel and diazo and transfer films.

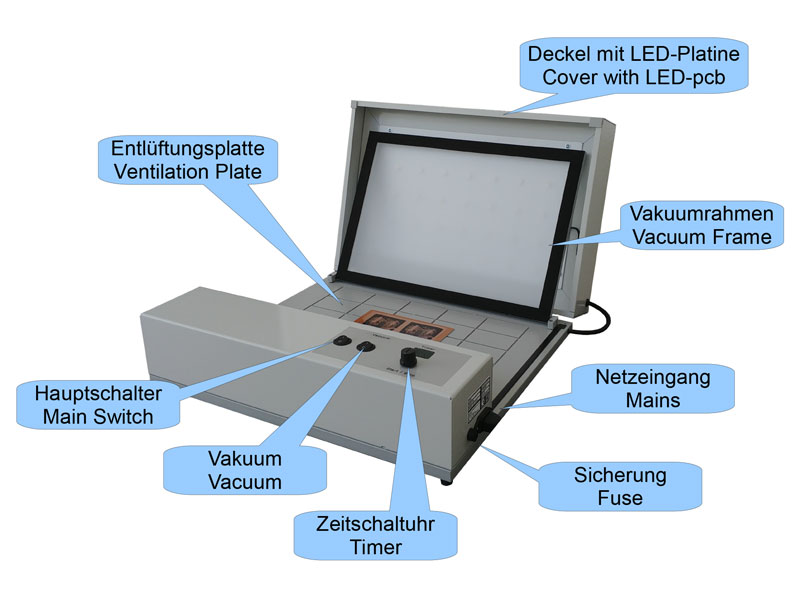

  • LED grid exposure
  • Exposure area: 250 x 380 mm ca. (recommended: 360 x 230 mm)
  • Integrated vacuum pump with vacuum frame
  • Vacuum film also ideal for cliché exposure

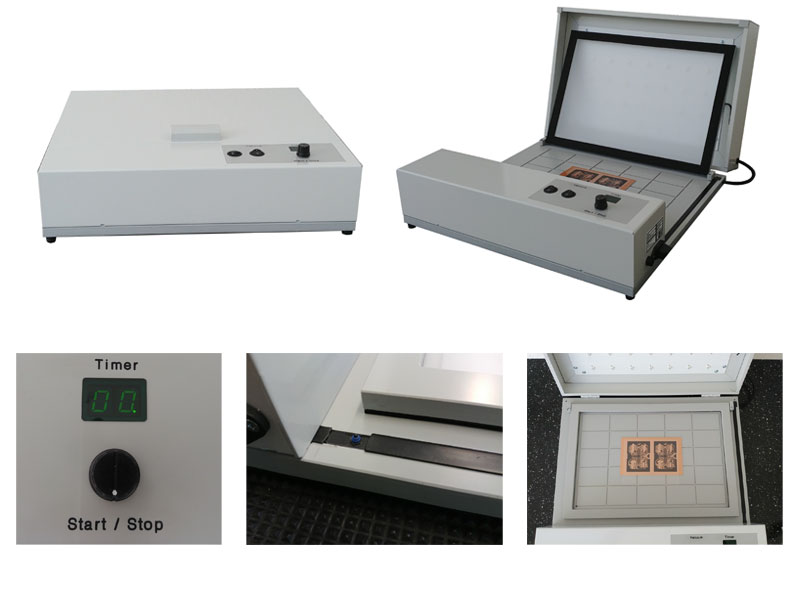

  • Digital timer (1-99 seconds or 1-99 minutes) with countdown and end-signal function
  • Maintenance-free steel structure
  • Ventilation base plate made of plastic
  • Electrical connection: 108-230 V / 50-60 Hz, 1-phase, 45 W
  • Dimensions (LxWxH): 480 x 454 x 130 mm
  • Weight: 13 kg.
