Description
Weller Pyropen Piezo Set
Pyropen Piezo Set – Self igniting butane gas soldering iron with solder and hot blow functions, supplied with chisel tip, hot air nozzle, special tip for shrinking hoses, gas refill can, iron-holder, sponge and burn proof pocket in metal box.
Weller product no.: T0051605999.
Key benefits

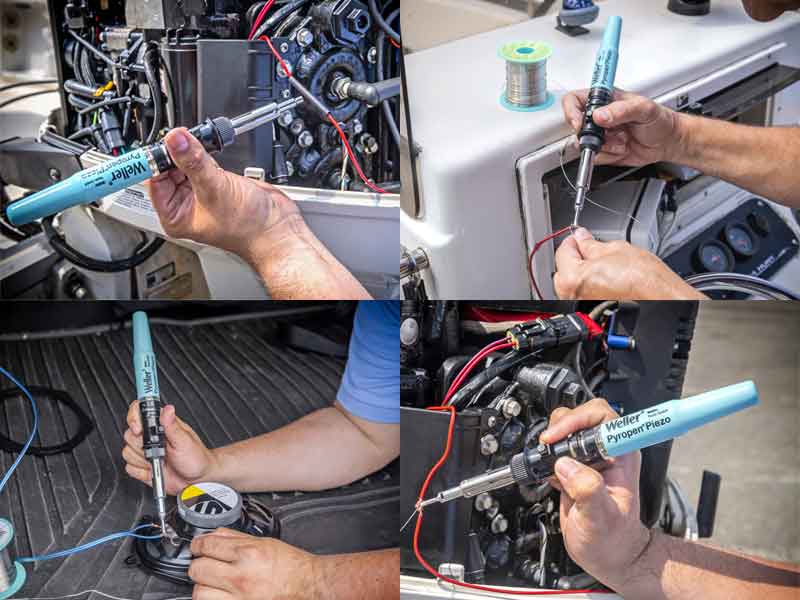

- Solder on the go, even outdoor – Complete your soldering task anywhere, without the need for a mains supply or obstructing cables in the way
- Ready to use within seconds – Rapid heat up time, no long waiting for heating up the iron
- Self-igniting Piezo function – Convenient one hand start with self-igniting push button piezo ignition
- Easy refill with Weller butane gas in just a few seconds for an almost uninterrupted workflow.
Specifications
- Adjustable temperature range (soldering): 250-500 °C
- Adjustable temperature range (hot air): 250-650 °C
- Compared to electrical power 20-80 W
- Operation time: the soldering iron works approximately 3 hours with one filling of Weller Butane gas.

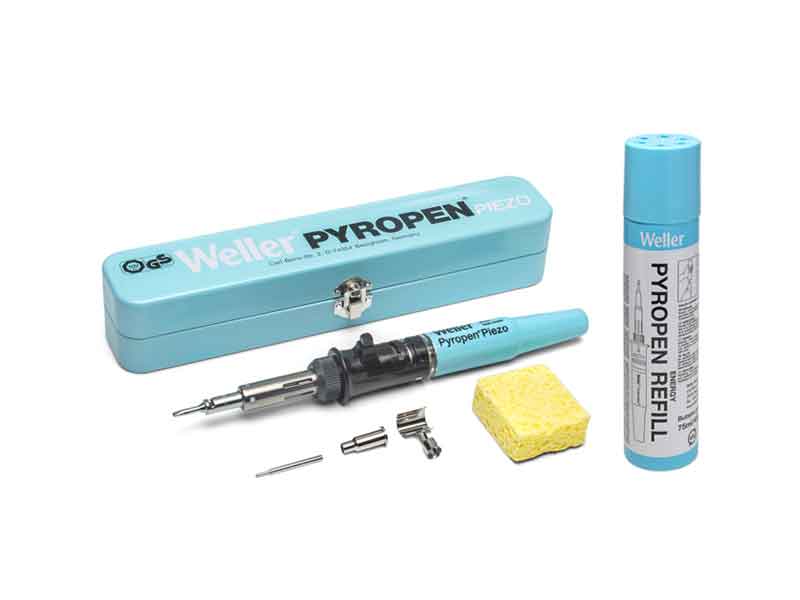

Standard supply includes

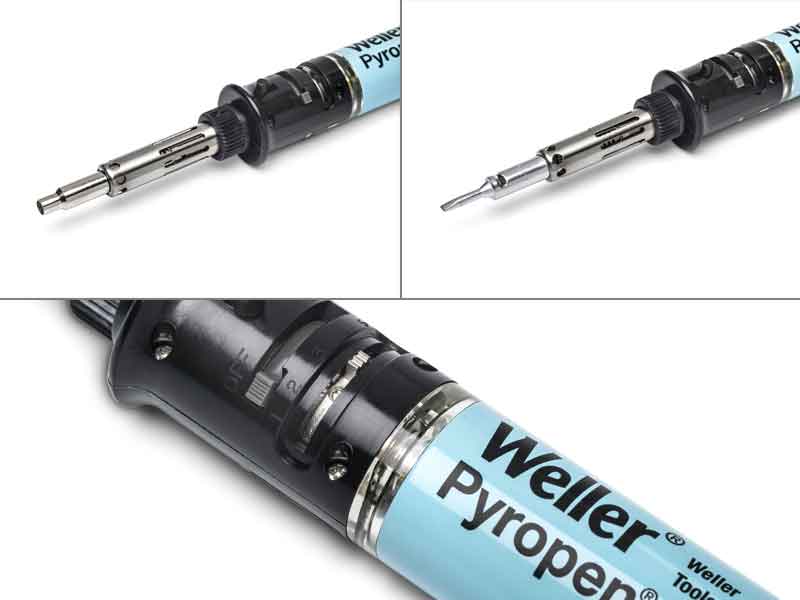

- 70-01-02 (T0051612199) – Chisel tip, Width 3.0 mm
- 70-01-52 (T0051614299) – Hot air nozzle, Ø 4.9 mm
- 70-01-55 (T0051615999) – Reflector for heat shrinking, diameter Ø 6.0 mm, width18.0 mm

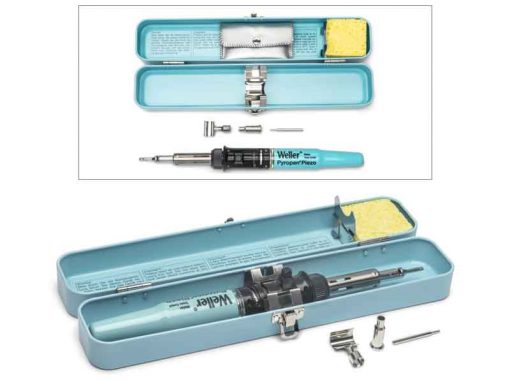

- 7040U (T0051615699) – Burn proof accessory pocket, iron holder and cleaning sponge in metal box
- Butane gas refill canister, 75 ml (42 g) (T0051616099).
PRODUCT IDENTIFIER IN THE SAFETY DATA SHEET:
Product name: Pyropen refill – Article no. (user): T005 16 160 99 / 49
LABEL ELEMENTS:
Hazard labelling pursuant to EC Regulation 1272/2008 (CLP) and subsequent amendments and supplements.
Hazard pictograms:
Danger. Extremely flammable gas. Contains gas under pressure; may explode if heated.
Keep out of reach of children – Keep away from heat, hot surfaces, sparks, open flames and other ignition sources. No smoking – Do not pierce or burn, even after use – Leaking gas fire: Do not extinguish, unless leak can be stopped safely – Eliminate all ignition sources if safe to do so – Store in a well-ventilated place – Protect from sunlight. Do no expose to temperatures exceeding 50 °C / 122 °F.
Nominal quantity: 75 ml / 42 g
DETAILS OF THE SUPPLIER OF THE SAFETY DATA SHEET:
Weller Tools GmbH – Carl-Benz-Strasse 2 – Germany 74354 Besingheim – Tel. +49 7143 580-0 – www.weller-tools.com
