SP70S Soldering Iron Gun with Manual Solder Feed (70W)

Price excluding taxesPrice including taxes
114,60/Pc 139,81/Pc

Available in 7/10 days

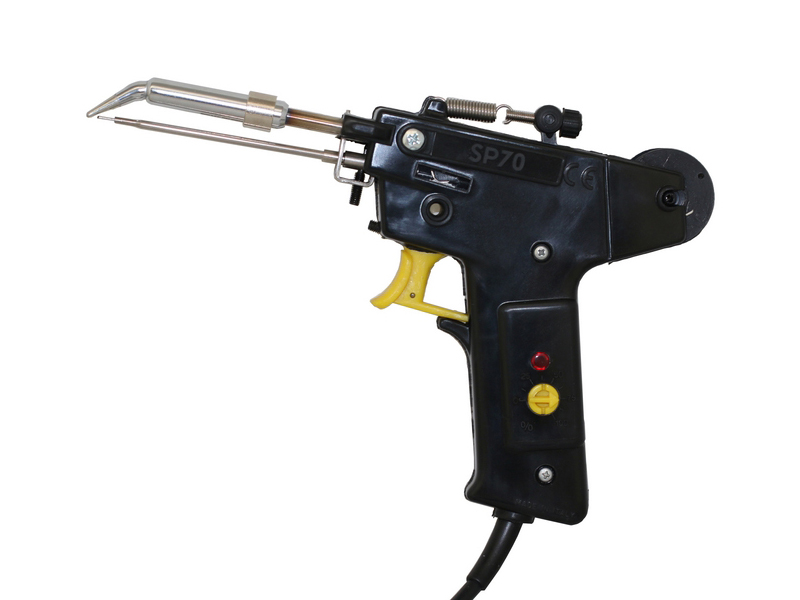

SP70 S Pistol grip soldering iron

SP70 S Thermo-regulated soldering gun with manual solder feed. “S” version, equipped with stand-by function.
It can accomodate both leaded and lead-free solder wires from Ø 0.7 up to 1.7 mm. At each trigger activation the wire advances toward the tip for a length that can be adjusted within a range of 1.0 / 4.0 mm.
A controller on the handle allows the operator to adjust power from 0% to 100% (max. power 70 W).
A red LED light indicates the correct functioning of the resistor.
Compared to its previous version (SP70, El.Mi code 650690A), SP70 S comes with a motion sensor which enables stand-by mode: after 2 minutes without movement, the soldering iron automatically lows its power to 40% (if power > 40%, otherwise it remains unchanged), and after another 20 minutes of inactivity it goes into stand-by mode. The iron is reactivated on its first movement, returning to the previously set power.
Old versions can be updated to the new functionality upon request.


  • Supply voltage: 230 Vac, 50/60 Hz
  • Power: max. 70 WAdjustable from 0% to 100% – PWM regulated
  • Operating temperature: max. 500 °C
  • Tolerance: ± 15 °C
  • Heating time (0/300 °C): approx. 3 min.
  • Stand-by mode: Yes
  • Compatible alloys: Sn/Pb, Lead-Free
  • A viewing window facilitates solder loading into the delivery tube
  • Solder feed tube position: variable
  • Tips family: Weller SF series soldering tips
  • Weight: 196 g (380 g with power cord)
  • CE, RoHS compliant
  • Made in Italy by El.Mi.

Scope of supply:

  • SP70 S soldering gun
  • SF 25 soldering tip, 2.5 mm
  • Solder feeding reel
  • CH hex key, 2 mm
  • Solder-delivery tubes (1 x Ø 1 mm , 1 x Ø 1.7 mm)
  • Power cable (3 x 0.75 mmq, 2 m length, with schuko plug).

SP70 is a replacement article for the following discontinued products: Weller WSF80 (T0051384899), Ewig TRM70.

Additional information

Weight 0,48 kg
Dimensions 29 × 23 × 4 cm


RoHS (Yes/No)
