Description

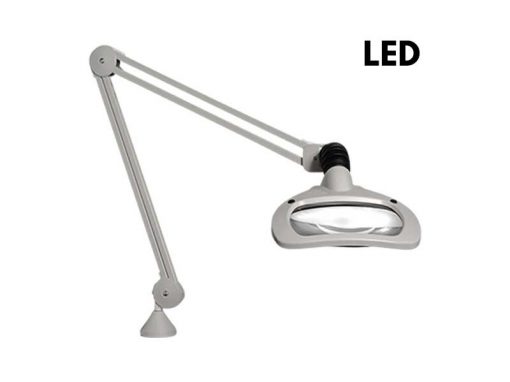

WAVE magnifying lamp with white LEDs, 3.5/5di
WAVE – Luxo series bench magnifier by Vision Engineering. Standard version (non-ESD) with white light.
Luxo magnifiers incorporate the same excellent design adopted throughout Vision’s award-winning stereo-microscopes, providing maximum clarity, flexibility and stability. Wave models offer shadow-free magnification and 3D viewing with an independently controlled left and right illumination. The 3D-feature is especially useful when working with circuit boards and similar delicate objects in inspection and rework applications.
Available sizes (Dioptres): 3.5 (El.Mi code 151513A), 5.0 (El.Mi code 151513B).
Product variations: WAVE is available with white LEDs, UV LEDS, white & UV leds, white leds & CCT control – Structure: Standard or ESD safe.
Accessories (NOT included): STAYS additional lenses – Benchkam camera for image capturing and sharing.
Specifications
- ILLUMINATION:
2 x 6 W LED modules, partialisable (right/left)
3-step adjustment: 0 – 50 – 100 %
Lighting (279 mm working distance, 11″): 4600 lux
Correlated colour temperature (CCT): 4000°K
Colour rendering index (CRI): 80
Auto-off function. - OPTICS:
Rectangular crown glass lens: 3.5 di (1.88 x), 5 di (2.25 x)
Dimensions: 171 x 114 mm (6.7 x 4.4”) - STRUCTURE
Fully-enclosed neck
“Hands free” design: no knobs to tighten, nothing to adjust
A flexible and self-balancing arm with friction-free connection to the head ensures easy and exact positioning
Material: Steel stand with aluminium head – Colour: Light grey
Stand technology: High-resistance internal parallel spring (1143mm, 45”), Three-section articulated K arm
Table mounting: Fixing clamp (other possibilities are available on request).
Magnification range with additional lenses
For a larger magnification range you can add STAYS lenses (NOT included) to the main one, obtaining a maximum magnification of 4.75x, as described in the table below.
