Description
ESD floor mat roll, 2x23m
QUICKSTAT ECN – Anti-static, ESD safe floor mat in 23 metres roll, characterized by an easy, quick and cost-effective installation process.
Double-layer type (static dissipative / conductive): its conductivity depends on the highly conductive lower layer.
In very small areas (up to 2 sqm, using a single mat cut), QUICKSTAT can be layed simply using a common double-sided adhesive tape, making possible an effective installation at extremely low costs. Earthing can be done by installing a grounding cable equipped with a 1 MOhm resistor.
In bigger areas (and in any case, when using multiple mat cuts), the use of conductive glue* is necessary, having previously installed a copper grid on the floor below for grounding, connected with earthing points.
| Roll dimensions: | 2 x 23 m |
| Selling unit: | square metre |
| Minimum order quantities: | 46 sqm and multiples |
Specifications

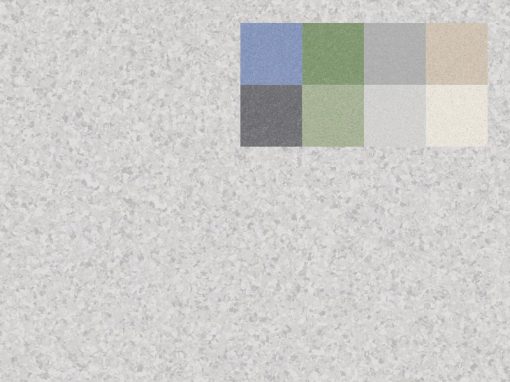

- Available colours: Light grey (131857A), Medium grey (131942N), Dark grey (131942B), Beige (131942C), Warm beige (131942D), Green (131942E), Dark green (131942F), Medium blue (131732E).
- Thickness: 2 mm
- Material: PVC
- Floor type (ISO 10581): Homogeneous vinylic flooring, static dissipative.
*ATTENTION: In case of gluing, QUICKSTSAT can only be installed in environments with rising damp values lower than 2%.
