Description

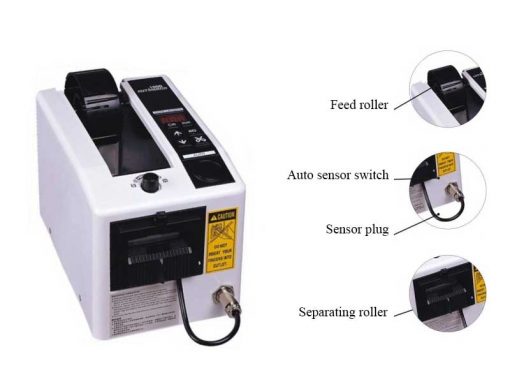

Automatic dispenser of adhesive tape
EM100 – Automatic adhesive tape dispenser, programmable for cutting pieces of tape in 1 length.
Helpful both for packaging and soldering operations that require the use of kapton tape.
It is compatible with any kind of tape (kapton, polyamide, vinyl, teflon, mylar, nomex, aluminium, polyethylene, cellophane, paper…), exept the double sided.
Functioning
- Pushing the START button, EM100 cuts the tape in the programmed length
- When the operator takes the cut piece of tape from the dispenser, a sensor registers the operation and starts the next cut.
Specifications
- Supply voltage: 230 V
- Functioning mode: Manual, Automatic
- Tape length range (adjustable): 20 mm / 10 m
- Tape width range: 7 / 50 mm
- Max. inner diameter of the tape roll: 75 mm
- Max. outer diameter of the tape roll: 130 mm.
