KF100AR Ionizing Bar with 5 Fans High Frequency (0±10V)

Price excluding taxesPrice including taxes
620,50/Pc 757,01/Pc

1 in stock

Product Code: 151512E
Categories: ,
Tag:

Description

5-Fan ionizing bar KF100AR model

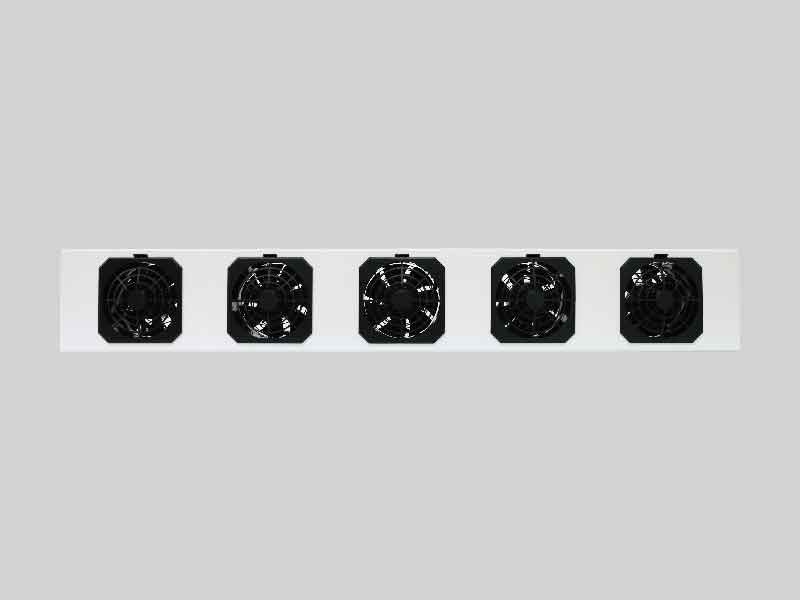

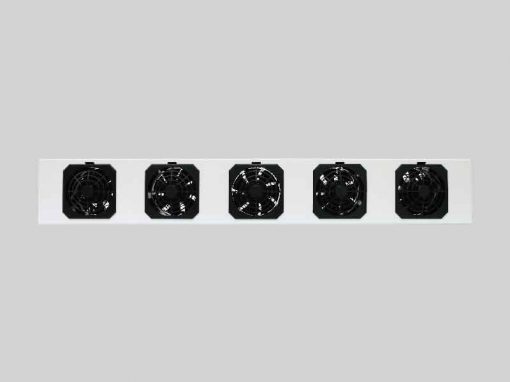

KF100ARHigh-frequency ionizing air blower with 5 ion fans.
It requires a reduced frequency of maintainance, thanks to the automatic cleaning function of the discharge needles.

Specifications

  • Power supply: 220 Vac, 50 Hz / 110 Vac, 60 Hz
  • Applied voltage: High-frequency, ± 2200 Vac
  • Automatic ion balance system: 0 ± 10 V
  • Adjustable air flow: 7 levels
  • Air volume (single fan): 2.56 – 4.07 m³/min
  • Test results*:
    Distance 300 mm: Static decay time (+/- ): 1.0 / 1.5 s – Residual voltage: < 0 ± 10 V
    Distance 600 mm: Static decay time (+/- ): 2.0 / 3.0 s – Residual voltage: < 0 ± 15 V
    Distance 900 mm: Static decay time (+/- ): 3.5 / 4.5 s – Residual voltage: < 0 ± 20 V
  • Ozone concentration (150 mm distance): 0.03 ppm
  • LED indicators (Green/Red): Fan operation, High-voltage operation
  • Programmable self-cleaning (time interval): from 0 to 999 hours
  • ESD safe: yes
  • Machine lock function: Yes

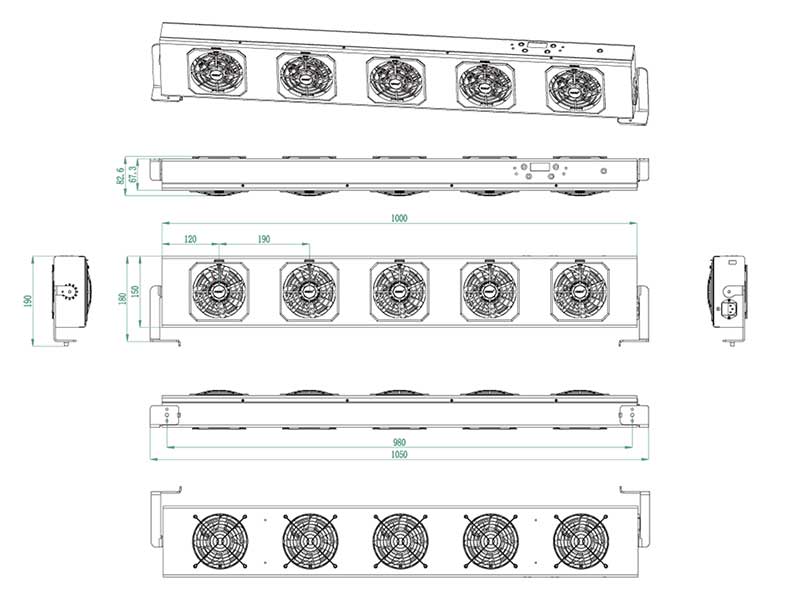

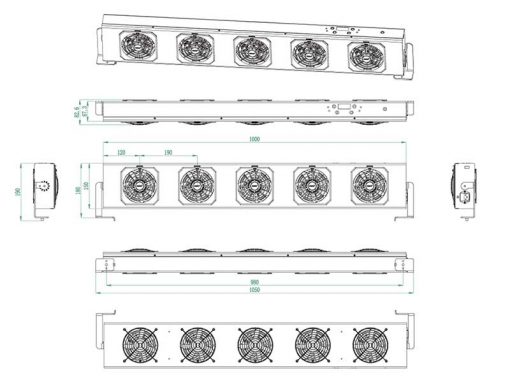

  • Dimensions (without supports): 1000 x 82 x 150H mm
  • Total weight (with supports): 6.4 Kg
  • Operating temperature: 0-40°C.

Additional information

Weight 6,40 kg
ESD
