Description
Ionizing air blower for cleanrooms

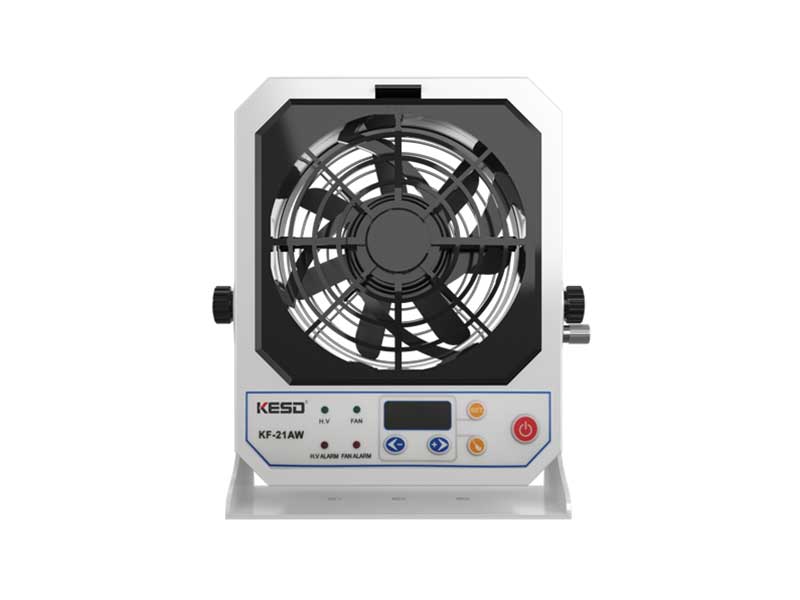

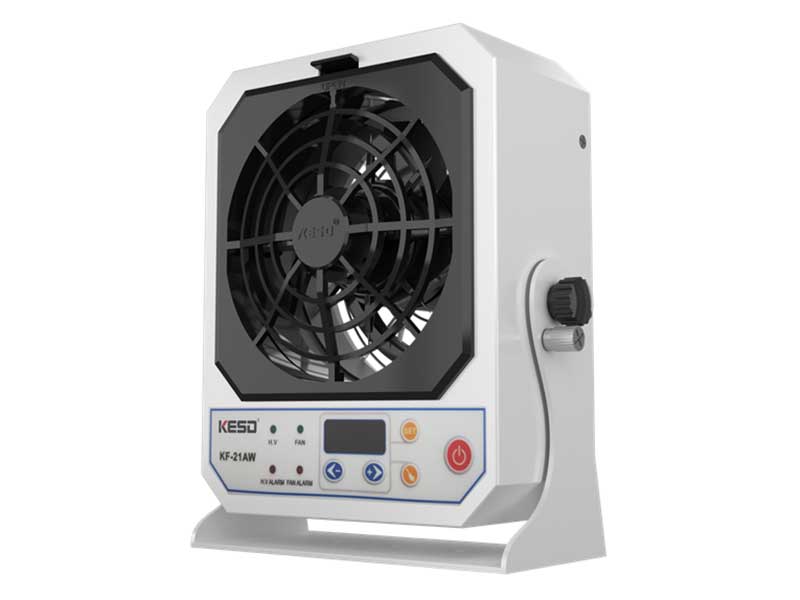

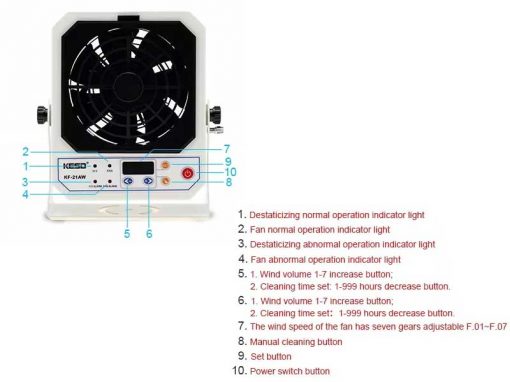

KF-21AW – High-frequency benchtop ionizer with 1 ion fan.
It requires a reduced frequency of maintainance, thanks to the automatic cleaning function of the discharge needles.
Specifications
- Power supply: 24 Vdc
- Applied voltage: High-frequency, ± 2200 Vac
- Automatic ion balance system: 0 ± 20 V
- Adjustable air flow: 7 levels
- Air volume (single fan): 2.56 – 4.07 m³/min

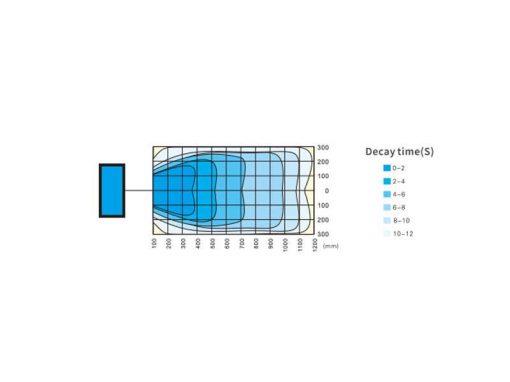

- Test results*:
Distance 300 mm: Static decay time (+/- ): 1.0 / 1.5 s – Residual voltage: < 0 ± 5 V
Distance 600 mm: Static decay time (+/- ): 2.0 / 3.0 s – Residual voltage: < 0 ± 10 V
Distance 900 mm: Static decay time (+/- ): 3.5 / 4.5 s – Residual voltage: < 0 ± 20 V - Ozone concentration (150 mm distance): 0.03 ppm

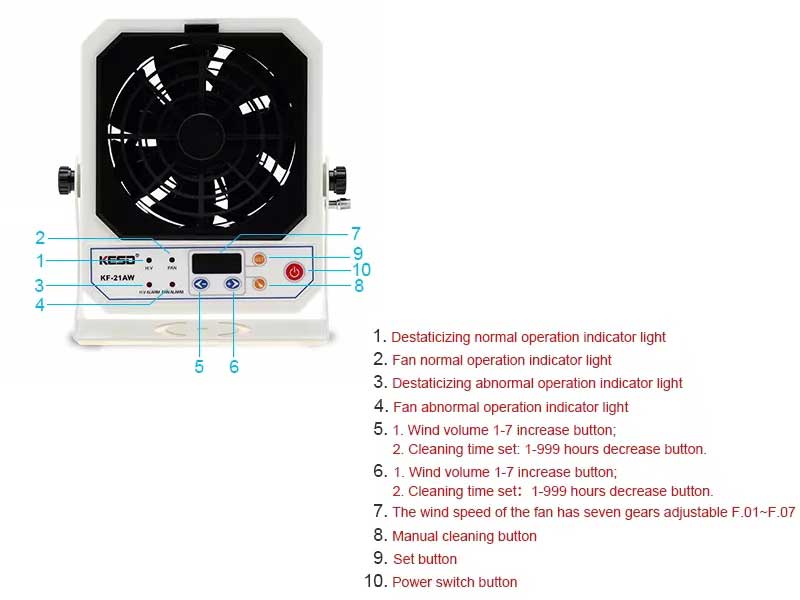

- Operating signals: LED indicators, Acoustic alarm
- Programmable self-cleaning (time interval): from 0 to 999 hours
- Machine lock function: Yes
- Housing material: Anti-static, ESD safe ABS
- Suitable for 1000+ Class Cleanrooms
- Connection for grounding cord (cable NOT included): Yes
- Dimensions (without supports): 180 x 70 x 192H mm
- AC/DC supply is included in the delivery.
