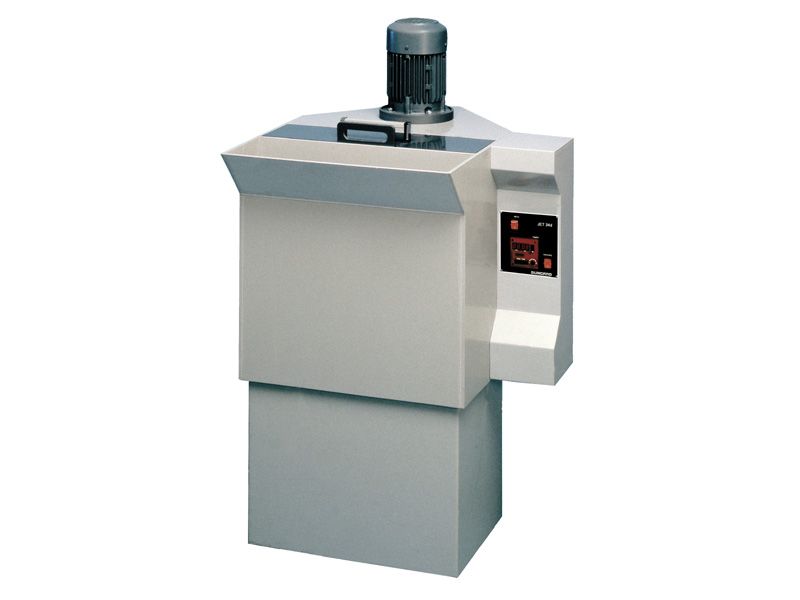

JET34D Spray Etching Machine

Price excluding taxesPrice including taxes
3.510,50/Pc 4.282,81/Pc

Available in 20/30 days


Spray etching/developing machine

Bungard JET 34 DPowerful spray etching or spray developing machine, designed for use in PCB labs.
Capacity up to 3m²/h possible (single-sided, positive material).


  • Maintenance-free system with self-cleaning nozzles
  • Etching speed of 35 µm Cu within 90 seconds (warm Fe-III-Cl)
  • Line resolution better than 0.1 mm
  • Big lid for easy loading, with built-in security switch
  • Recommended board size: 300 x 400 mm (Maximum 350 x 450 mm)
  • Small PCBs can be fi xed on carrier with adjustable holder
  • Easy and clean handling by hinge free lid and handle outside of machine
  • If you turn the carrier you can etch double sided
  • Overflow wash tank in the front for rinsing etched boards
  • Digital timer with countdown, auto-reset and beeper
  • Sturdy construction fully made of PVC and titanium
  • Suitable for all common etchants. Also well suited for spray developing of dryfi lm resist (anti-foam agent recommended)
  • Strong 1000 W heater with thermostat and over-heat fuse
  • 3 cog valves (etching tank, rinse overfl ow, rinse inlet).

Additional information

Weight 35 kg
