DP ESD – Piergiacomi Depaneling Tool (1÷2.5mm)

Price excluding taxesPrice including taxes
23,59/Pc   –   26,11/Pc28,78/Pc   –   31,85/Pc

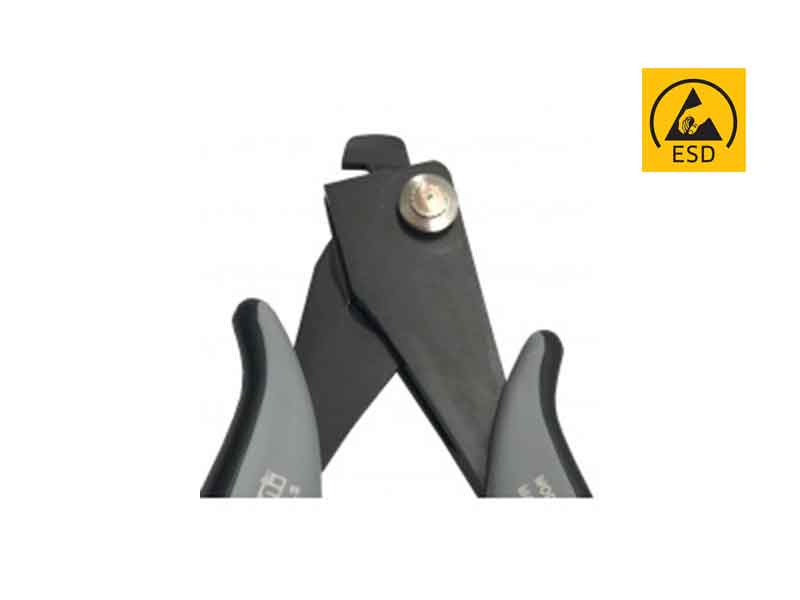

Piergiacomi DP ESD – Manual depaneling tool

Piergiacomi DP series depaneling tool, anti-static ESD safe version with dissipative handles of the standard tool.
It separates large sheets of multiple PCB panels in a quick, economic and safe way, leaving well finished cut surfaces.
The maximum length of the isthmus/tab must not exceed 3.0 mm.

Available sizes (blade thickness): 1mm (DP 10 ND mod.), 1.5mm (DP 15 ND mod.), 1.8mm (DP 18 ND mod.), 2mm (DP 20 ND mod.), 2.3mm (DP 23 ND mod.), 2.4mm (DP 24 ND mod.), 2.5mm (DP 25 ND mod.).


  • Length: 147 mm
  • Cutting force: 3 Kg (DP 10 ND, DP 15 ND, DP 18 ND, DP 20 ND), 7 kg (DP 23 ND, DP 24 ND, DP 25 ND)
  • Max. PCB thickness: 2 mm
  • Max. isthmus (tab) length: 3 mm
  • Min. isthmus/tab distance: 11 mm (DP10ND), 16 mm (all other models)
  • Standard version (non-ESD) available – El.Mi product Nr.: DPN.

Additional information



Blade thickness

, , , , , ,
