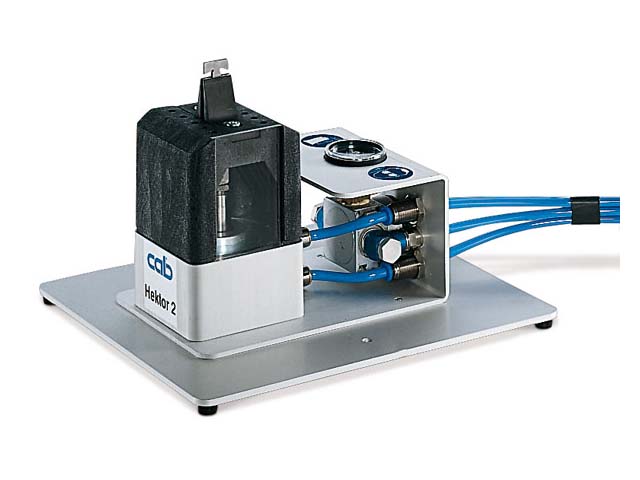

Hektor 2 Off-cut remover

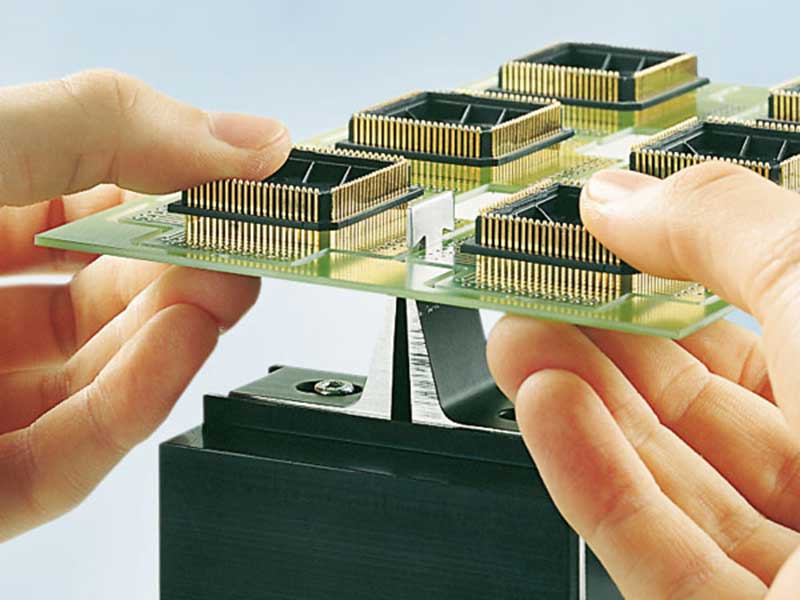

Hektor 2 Cab – Pneumatic off-cut remover separates milled PCBs carefully and fast. The off-cut material is removed smoothly and precisely, using compressed air for the separation process.
The operating pressure can be set on the machine.
When the foot switch is pressed, the off-cut is punched out.
The off-cuts are collected in the collecting box.
When the gate is opened the waste material can be extracted.
- Separation type: Punch blade
- Max. PCB thickness: 2.5 mm
- Air connection: 1/4“ plug-in coupler
- Operating pressure: typical 4 bar
- Sizes: 220x255x170h mm.
ATTENTION: THE BLADE IS NOT INCLUDED IN THE STANDARD SUPPLY
