DENON SC7000Z Desoldering Tool (100W)

Price excluding taxesPrice including taxes
399,00/Pz 486,78/Pz

Available in 10/15 days

Product Code: 146417B
Categories: ,

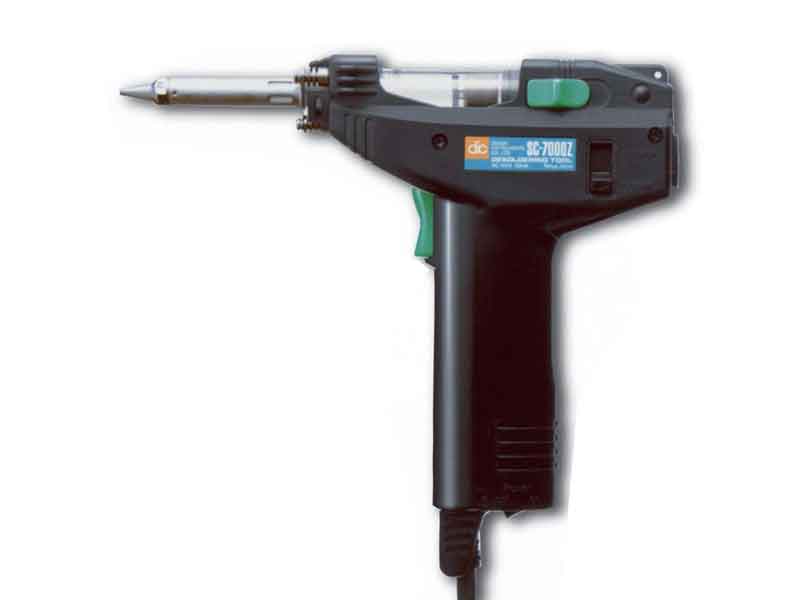

SC-7000Z Gun type desoldering tool

DEN-ON SC-7000ZDesoldering tool with built-in pump, designed for Lead-Fre alloys.
It provides the best work efficiency with no failure, thanks to the combination of a 100W ceramic heater with sensor feedback temperature control circuit and high vacuum capacity . A direct connection between the diaphragm pump and the tip can provide high vacuum efficiency, making it suitable also for 8-12 layered PCBs.
SC-7000Z features a portable, compact design, low noise and low vibration.


  • Voltage: AC 100 V, 120 V, 230 V, 50/60 Hz
  • Power consumption: 120 W
  • Ceramic heater: 100 W
  • Motor output: 12 W
  • Pump type: Diaphragm
  • Vacuum attained: -86 kpa
  • Time required to reach max. vacuum: 0.1 sec
  • Temperature range: 350-500 °C
  • Air flow rate (open) 15 l/min
  • Hot air max. temperature: 400 °C
  • Insulation resistance: more than 100 MΩ
  • ESD safe: Yes
  • Weight: 420 g.
