Description

Weller ZS Guard 2 Kit2 fume absorber

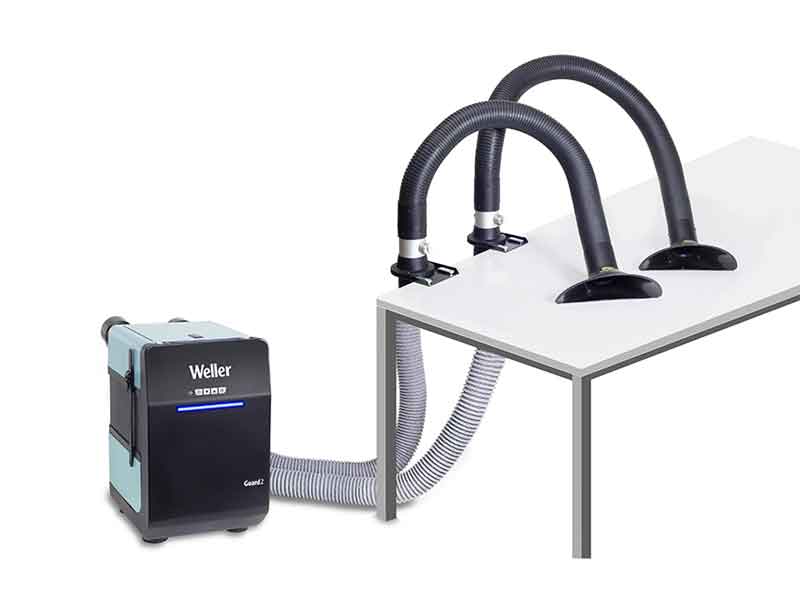

ZERO SMOG GUARD 2 KIT2 230V F/G – Soldering fume extraction system for 2 work stations.
Complete model (with filter monitoring function and front light bar) equipped with extraction arms and nozzles.
Characterized by quiet operation, high filtration efficiency, space-saving portable design with easy filter and pre-filter replacement, powerful turbine and high flow rate.

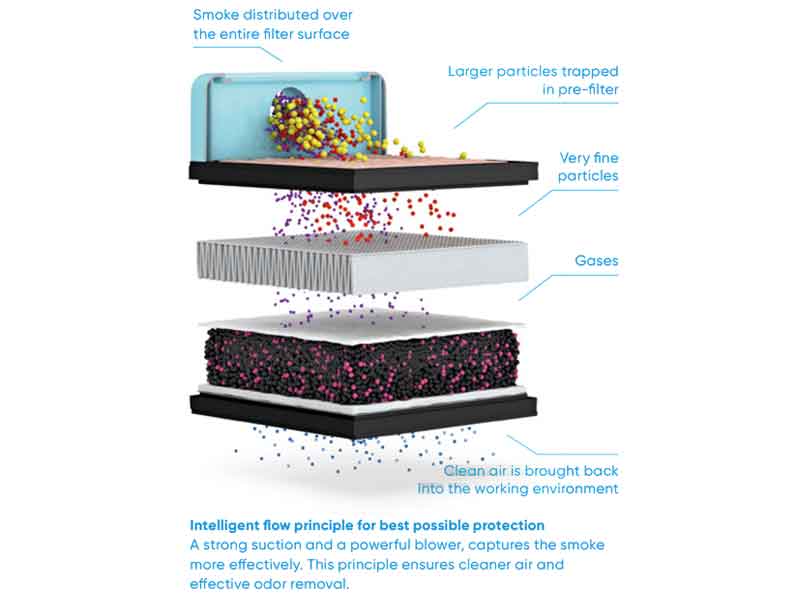

Filtration system: HEPA H13 particle filter with gas filter + PM1-75% pre-filter.
It effectively captures particles (up to 99.95%) and gases and eliminates odors.
Weller product no.: FT91026699. UPC: 037103378941.

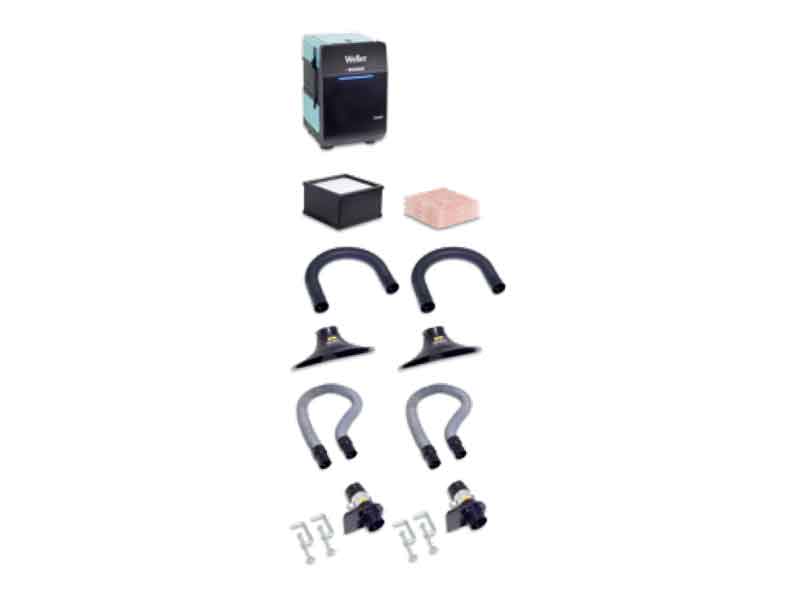

Standard supply includes:

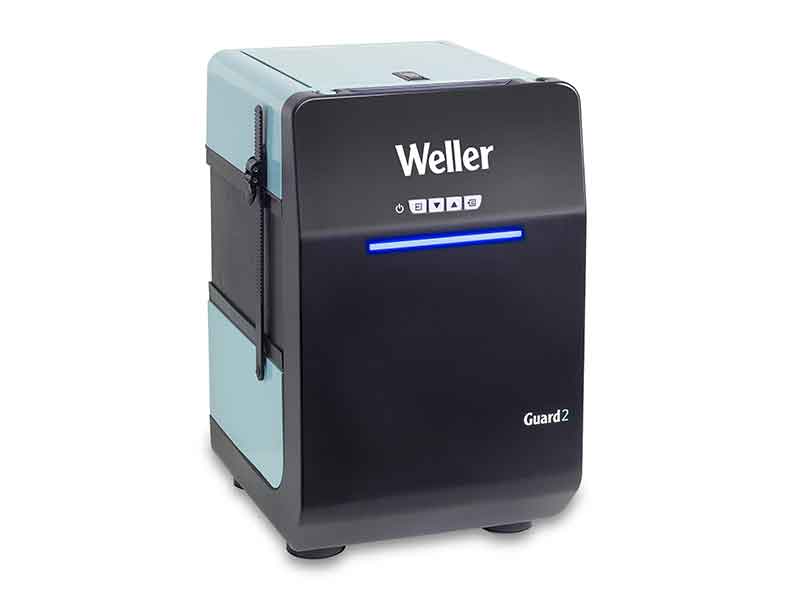

• ZS Guard 2 Unit (FT91022699) with Wide band gas filter set (FT91000049), consisting of:
  1 x Main filter suitable for the extraction of a wide range of gases (HEPA H13 class particle filter + gas filter made of activated carbon and potassium permanganate granules); 1 x Kit with 5 pre-filters ePM1-75% class (a pre-filter removes larger particles, extending the usable life of the main filter).
• 2 x 0F10 Easy-Click 60 series flexible extraction arm Ø 60 mm, total length 1 m (including connection sleeves on both sides)
• 2 x 700-3051-ESD Flexible extraction hose Ø 60 mm, length 3 m
• 2 x ALFA Funnel shaped nozzle with flat base (225 x 100 mm)
• 2 x T0053657499N Easy Click 60 series shut-off valve with 2 table-fixing clamp.
