Description

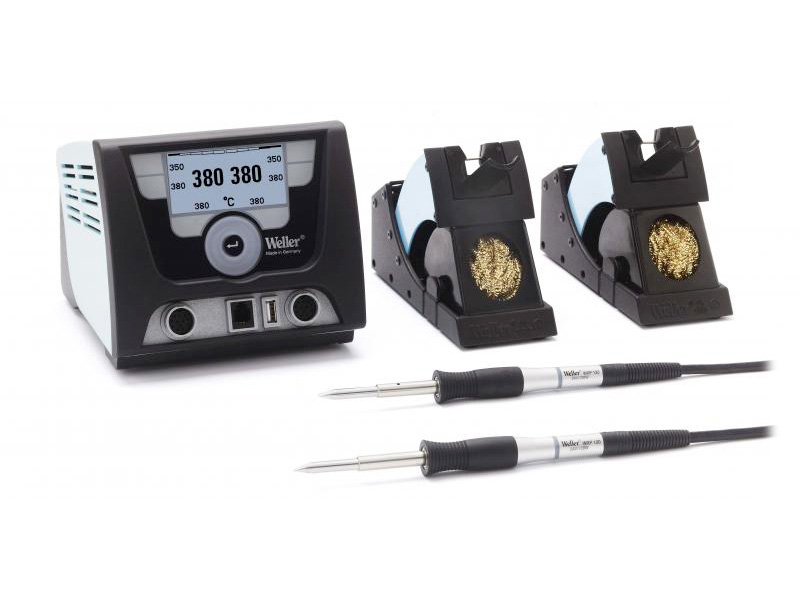

Weller WX 2020 – Dual soldering station

WX 2020 – Two-channel soldering station set, 200 W / 230 V.
Allows simultaneous operation of 2 soldering tools.
Weller product No.: T0053421399N.

Scope of supply:

• WX 2 (T0053420399N) – Digital control unit with 2 channels, 200 W / 230 V
• 2 x WXP 120 (T0052920199N) – Soldering iron 120 W / 24 V, with Power-Response heating technology
  Provided with XT B (T0054470499) – Soldering tip chisel Ø 2.4 mm, maximum heat transfer from the heater to the tip
• 2 x WDH 10 (T0051512199) – Safety rest with Stop-and-Go function and dry cleaner.

Specifications

• Channels: 2
• Heating output: 200 W (255 W)
• Temperature range (depends on tool): 100 – 550 °C
• Voltage: 230 V, 50 Hz
• USB interface: Yes
• Display: 255 x 128 dots / Backlighting
• WX compatible: Yes
• ESD safe: Yes.
