Description

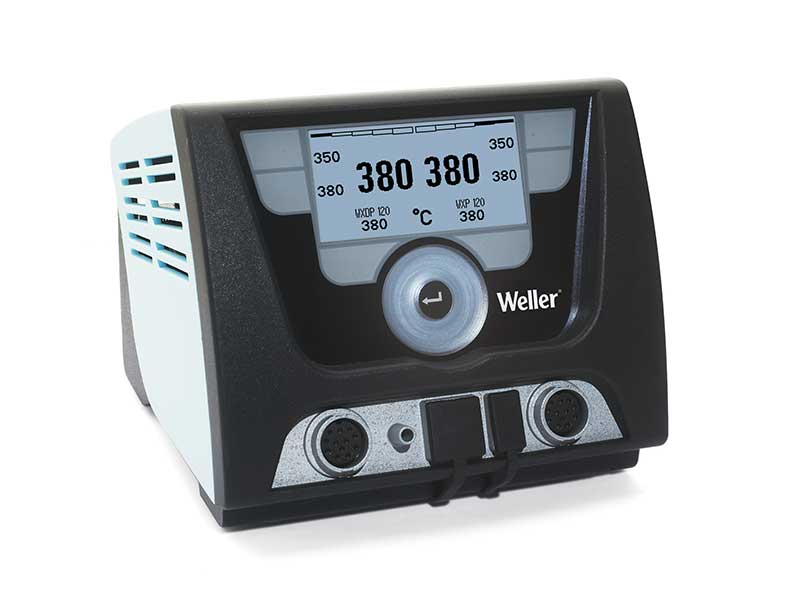

WXD digital control unit with 2 channels
Weller WXD 2 – Two-channel power unit for soldering and desoldering applications, 200 W (255W) / 230 V.
Requires external compressed air supply to operate (NOT included).
Weller product no.: T0053426699N.
Main features:
- Due to its power-range and extremely short heating time, the desoldering iron can easily handle jobs that would have been difficult in the past, including desoldering high mass PCBs
- Suction nozzle and solder cartridge can be changed quickly and easily
- Relatively low operating temperature (380 °C) and automatic standby mode controlled by the use sensor increase the service life of suction nozzles by a factor of 3
- A vacuum run-on time can be set to prevent the suction pump blocking.
Specifications

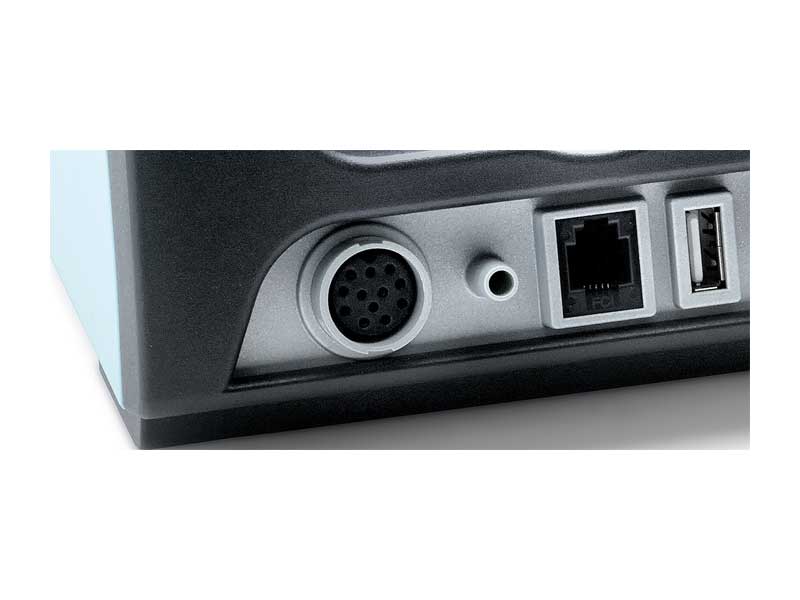

- Channels: 2
- Power: 200 W (255 W)
- Supply voltage: 230 V, 50 Hz
- Adjustable temperature range (depends on tool): 50 – 550 °C (150 – 999 °F)
- Temperature accuracy: ± 9 °C (± 17 °F)
- Temperature stability: ± 2 °C (± 4 °F)
- Vacuum max.: 55 kPa (8 psi)
- Air consumption: 35 l/min
- Compressed air connection: Outer diameter 6 mm (0.24 “) – Oil-free, dry compressed air
- Display: 255 x 128 pixels / Backlighting

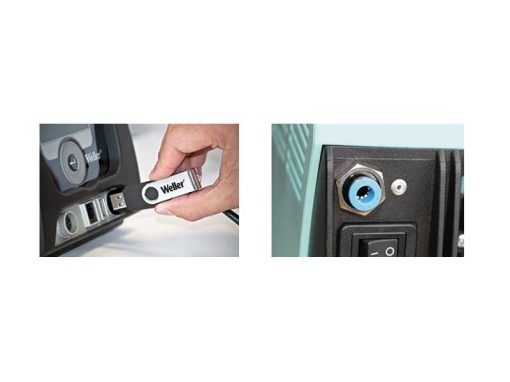

- USB port: On / USB interface in front of firmware updates, parameterization and monitoring
- Equipotential bonding: Yes
- Fuse: T2 A
- WX compatible
- ESD-safe
- IPC-compliant
- Power cable: EMEA.
