Sumake SF60 – Automatic Screw Feeder (M1-M5)

Price excluding taxesPrice including taxes
827,25/Pc 1.009,25/Pc

Available in 7/10 days

Product Code: 151358D
Categories: ,


Automatic dispenser for M1 to M5 screws

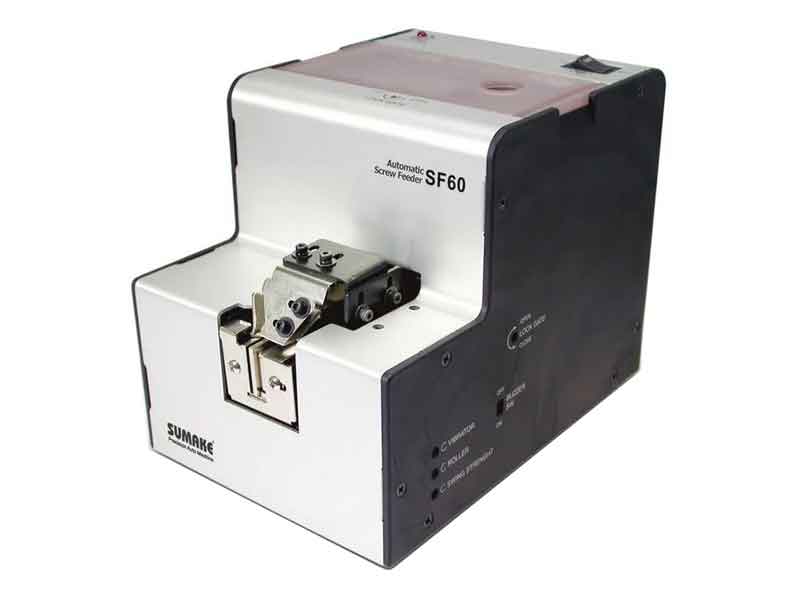

Sumake SF60 Universal automatic screw feeder, equipped with an adjustable rail which accommodates screw thread diameters from 1 to 5 mm.

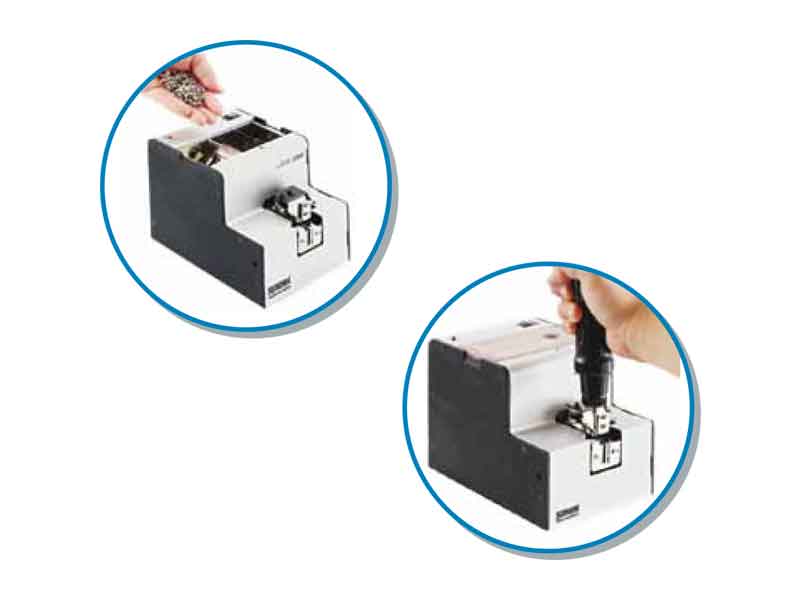

Ergonomic, compact and light weight, easy to install and operate. It increases productivity.


  • Applicable screw diameters: from M1 to M5
  • Applicable screw length (under head): max. 19 mm
  • Supply voltage: 100-240 Vac
  • Scooping chamber capacity: 200-220 cc
  • Dimensions: 182 x 126 x 147H mm
  • Weight: 2.17 kg approx.

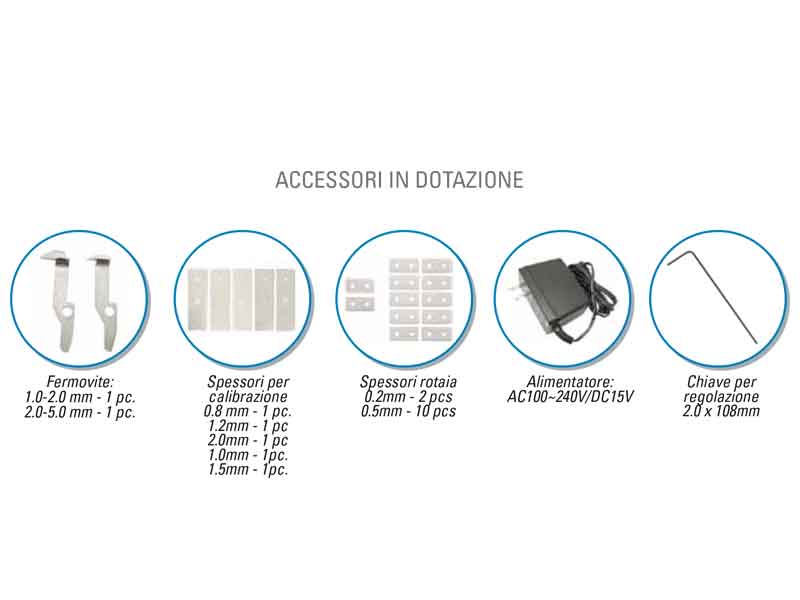

Standard delivery includes:

  • Screw stop: 1 x 1.0-2.0 mm, 1 x 2.0-5.0 mm
  • Calibration thicknesses: 1 x 0.8 mm, 1 x 1.2 mm, 1 x 2.0 mm, 1 x 1.0 mm, 1 x 1.5 mm
  • Rail thicknesses: 2 x 0.2 mm, 10 x 0.5 mm
  • Power supply: 100~240 Vac / 15 Vdc
  • Adjustment key: 2.0 x 108 mm.
