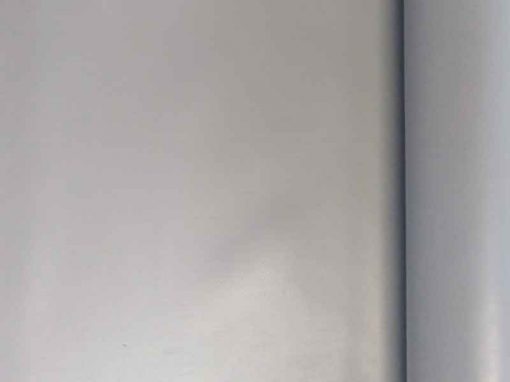

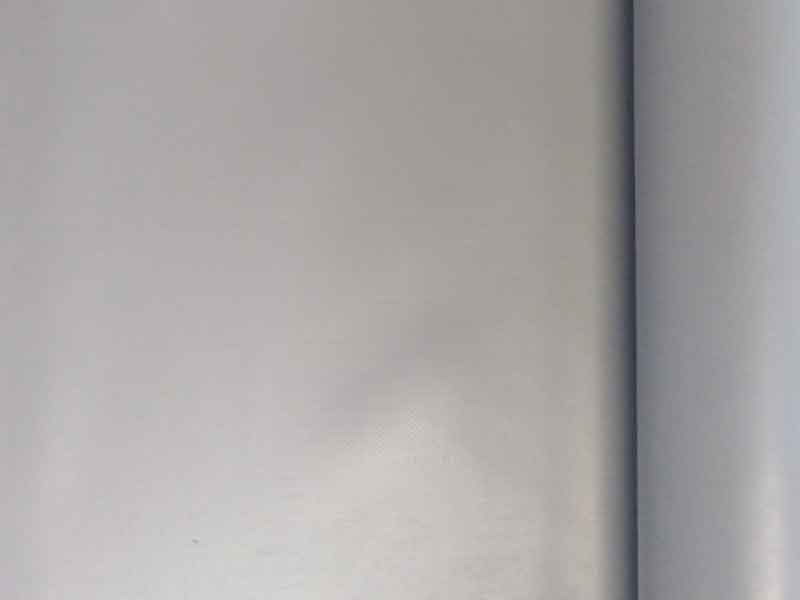

LCP – Silicone-based Insulating Fabric Roll (30cmx1m)

Price on request

Minimum Quantity:


Insulating fabric for PCB assembly

LC-PPlastic insulator with high thermal conductivity, suitable for assembling components without the use of silicone grease.
Thanks to its very low thermal impedance, this silicone-based insulating fabric allows thermal transfer without the need to use grease, while maintaining high insulation (1300-4000 V).
Minimum order quantites: 50 meters and multiples (Length).


  • Sheet dimensions (Width x Length): 30 cm x 1 m
  • Colour: Grey – Finishing: Smooth
  • Material: Silicone-based fabric – Reinforcement layer: Fiberglass
  • Thickness (± 0.05): 0.23 ~ 0.8 mm
  • Mechanical properties:
    Specific gravity: 2.5 g/cm³
    Tensile strength: 18 kgf/cm²
    Elongation: 3%
    Hardness: 85 ± 5 Shore A
  • Electric properties:
    Voltage breakdown: 4.5 kV
    Volume resistivity: >1010 Ohm cm
  • Thermal properties:
    Thermal conductivity: 0.3 W/m.k
  • Operating temperature: -40 ~ +80 °C
  • Regulatory: V-0 Flammability rating (UL94), RoHS, PFOA, PFOS, SVHC.
