Description

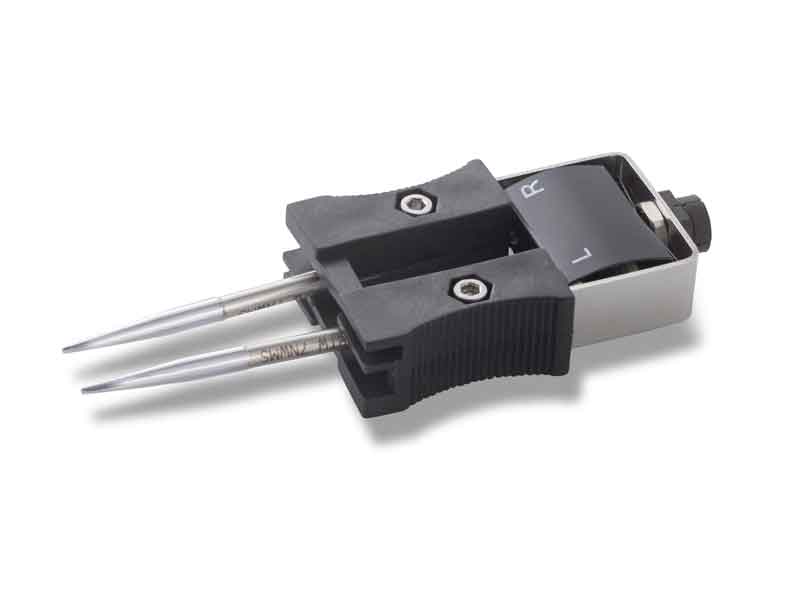

Weller RTW 7NWMS Soldering tip
RTW 7NWMS – Soldering tip set for WXMT / WMRT iron, 0.8 x 0.4 mm.
Non-wettable tips, designed for miniature works.
Excellent heat transfer together with a longer tip life.
Weller product no.: T0054465199N.
Specifications
- Type: MS, NW (Not Wettable) – This type of tip is used almost esclusively for soldering very small components that with standard tips would tend to stay on the tip rather than on the board (otherwise, if used for soldering standard components, the tip – not getting wet – would be ineffective because it would not be able to transfer the tin)
- Tip shape: Conical – Angle: 45°
- Performance: 80 W
- Tip width x thickness: 0.8 x 0.4 mm (0.031 x 0.016 Inches)
- Base diameter: 3 mm
- Length: 24 mm (0.945 Inches)
- Active Tip heating element technology: Yes.
