Portafusibile da pannello per fusibile 5x20mm
Portafusibile da pannello per fusibile 5x20mm - Dimensioni
  1. Portafusibile da pannello per fusibile 5x20mm
  2. Portafusibile da pannello per fusibile 5x20mm - Dimensioni

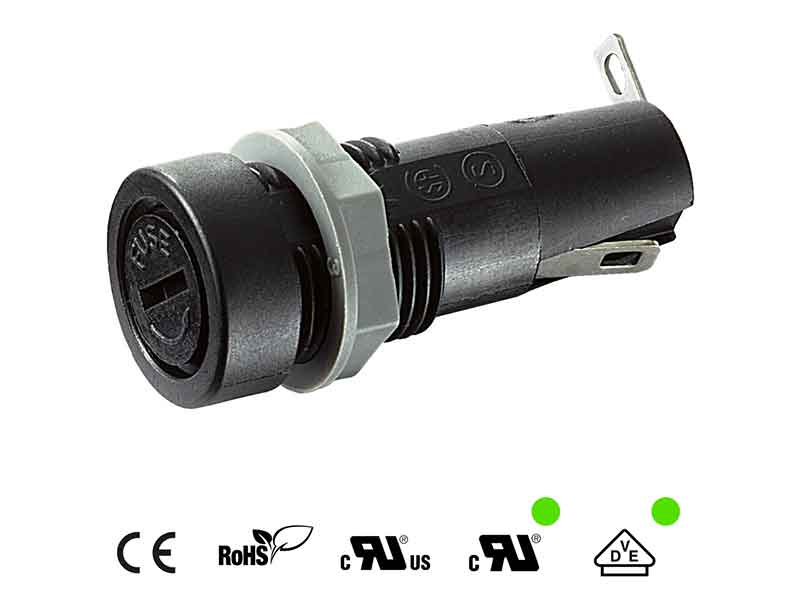

Panel Mounting Fuse Holder for Fuse 5x20mm

Price excluding taxesPrice including taxes
1,15€/Pc 1,40€/Pc

Available in 20/30 days

Minimum Quantity:
Product Code: 082877A
Categories: ,
Data sheet

Description

Panel mounting fuse holder for 5 x 20 mm fuse.
Model with recessed screw closure, solder connection terminals and plastic fixing lock nut.
Minimum order quantities: 100 pieces and multiples.

Specifications

  • Fuse type: 5 x 20 mm
  • For panel mounting – Mounting hole: Ø 12.7 x 12h mm

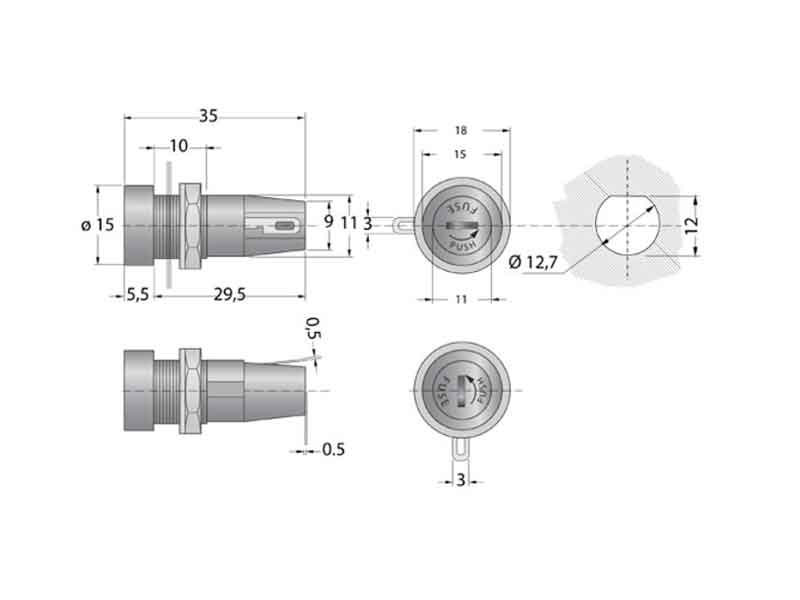

  • Dimensions: Technical drawing attached in the image gallery
  • Connection terminals: Eyelet to solder
  • Shocksafe category: PC2
  • Voltage: 250 V
  • Base body material: Self-extinguishing thermoplastic with PBT UL94V0 pressure spring
  • Contacts material: Tinned brass
  • Screw cap.
