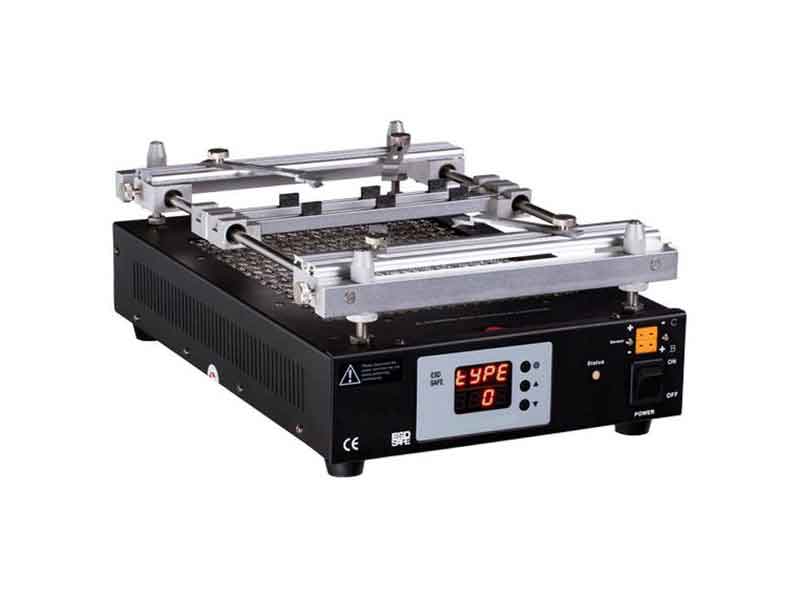

PH300 IR Preheater (200x250mm, 850W)

Price excluding taxesPrice including taxes
688,78/Pc 840,31/Pc

Product available on order


Infrared preheater, 850W

PH300 IR preheater with intelligent temperature control technology, 200x250mm, 850W.
Equipped with two external temperature sensors probes. Microprocessor accurately regulates temperature.
Three heating modes allow the unit to handle both leaded & lead-free preheating processes and are suitable for use with PCB containing BGA and SMD components.
The built-in professional board holder allows three dimensional adjustments.
Suitable for large sized PCBA, thanks to the large quartz heating element.


  • Supply voltage: 220-240 Vac
  • Power: 850 W
  • Temperature range: 50-400 °C
  • Heating area (WxL): 200 x 250 mm
  • Max. PCB dimensions (L): 270 mm
  • Heating method: Infrared
  • Fuse: 250 V, 8 A
  • Dimensions: 260 x 410 x 90h mm
  • ESD safe, RoHS.

Package contents: IR Preheater – 2 x Thermocouple, K-type.

Additional information

Weight 3,8 kg
