Description
Luxo LFM LED (G2) magnifying lamp
LFM LED – Luxo series bench magnifier with light by Vision Engineering.
Lightweight structure with flexible spring-balanced stand. LFM LED G2 bench magnifiers incorporate the same design excellence adopted throughout Vision’s award-winning stereo microscopes, providing maximum clarity, flexibility and stability.

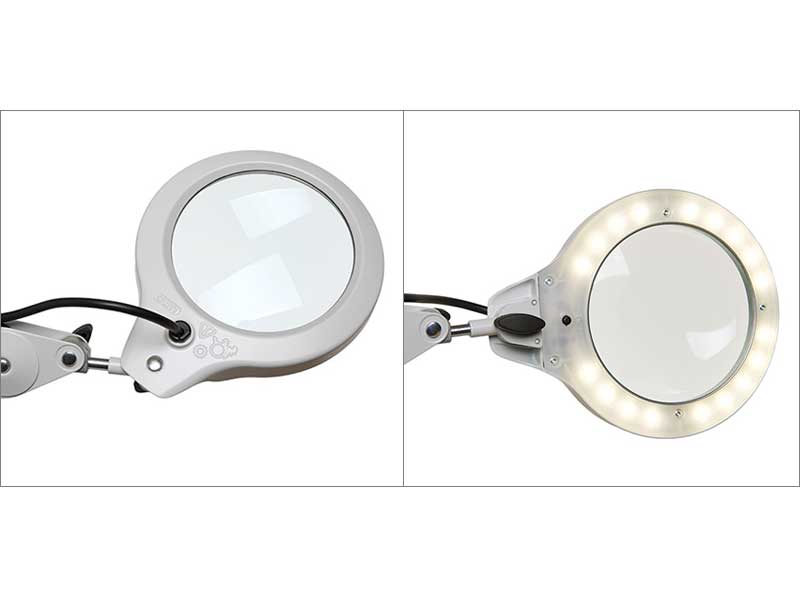

The ø127 mm glass lens is positioned in the middle of a circle of LED light sources: this is a perfect way of illuminating an object, virtually shadow-free.
Available sizes (Dioptres): 3.0, 5.0.
Accessories (NOT included): STAYS additional lenses – Benchkam camera for image capturing and sharing.
Specifications
- ILLUMINATION:
Circular 9W LED modules
3-step adjustment: 0 – 50 – 100 %
Correlated colour temperature (CCT): 4000°K
Colour rendering index (CRI): 80
Auto-off function. - OPTICS:
Circular glass lens: 3.0 D (1.75 x) / 5.0 D (2.25 x)
Diameter: Ø 127 mm (5”). - Material: Die-cast aluminium structure – Colour: Light grey
- Table mounting: Fixing clamp (other possibilities are available on request)
- Stand technology: Internal parallel spring (1000mm, 45”), Sturdy 3-section articulated arm.
Magnification range with additional lenses:
For a larger magnification range you can add STAYS lenses (NOT included) to the main one, obtaining a maximum magnification of 4.75x, as described in the table below.
