Description
120°C high-temperature rack for PCBs – 4 sizes
ESD safe conductive PCB rack for Pick and Place. Can accommodate up to 50 PCBs.
Metal frame with high-temperature resistant (up to 120°C) plastic parts. Not suitable for baking.
Gear track allows easy adjustment.
Specifications
- Max. no. of PCBs to be accomodated: 50
- Side guide slot: Depth 3.5mm, Width 5mm, Pitch 10mm
- Materials: Metallic top and bottom boards, High-temperature resistant ABS/PC plastic for lateral plates
- Max. temperature of the ABS/PC plastic parts: 120 °C
- Surface and volume resistance: 10^4 ~ 10^6 Ohms.
Available sizes
| Code | Overall dimensions | PCB dimensions | Available accessories |
| 149377Q | 355 x 320 x 563h mm | 350 x (50-250) mm | Additional Stop-Bar |
| 149628Q | 460 x 400 x 563h mm | 460 x (50-330) mm | Additional Stop-Bar |
| 149629Q | 535 x 460 x 570h mm | 535 x (50-390) mm | No |
| 149627Q | 535 x 530 x 563h mm | 535 x (50-460) mm | Additional Stop-Bar |
* All models on sale are supplie with 1 Stop-Bar

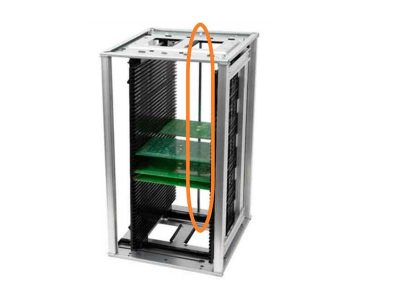

* The additional Stop-Bar to be purchased separately (code 149377QSTOP) can be used either to close the opposite side of the rack or as a spare part.
