Description

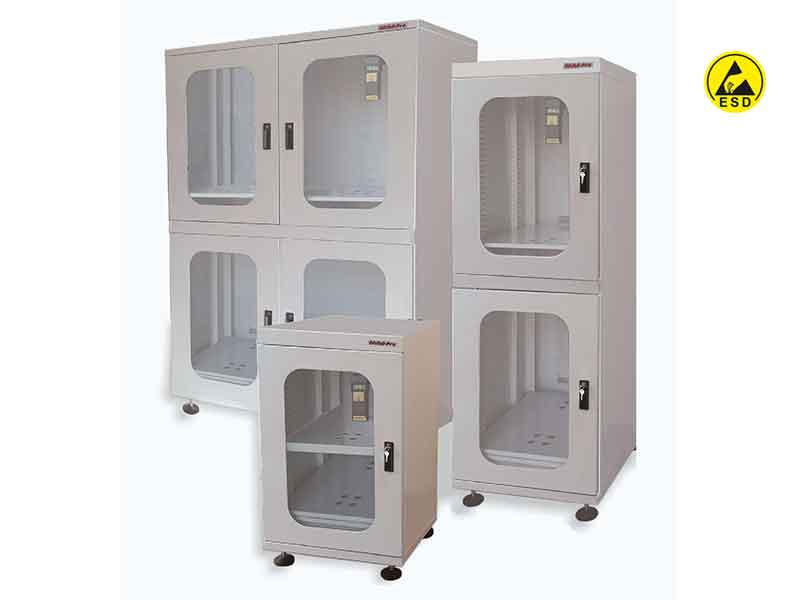

Ghibli Pro series dry box

GHIBLI PRO – Anti-static ESD safe dry storage cabinet, available in 3 sizes.
Developed for the safe storage of moisture sensitive devices (MSD) in accordance with J-STD-033 standard.
Flat design on the front side. Equipped with magnetic handles and lock on each door.

Available sizes:

• Model with 1 door (350 L) and 2 trays (510x606x18 mm each) – Power (average/max.): 40/250 W – External dimensions: 580x767x895 mm – Weight: 56 kg
• Model with 2 doors (700 L) and 5 trays (510x606x18 mm each) – Power (average/max.): 80/500 W – External dimensions: 580x767x1755 mm – Weight: 118 kg
• Model with 4 doors (1400 L) and 5 trays (1094x606x18 mm each) – Power (average/max.): 80/500 W – External dimensions: 1160x767x1720 mm – Weight: 178 kg.

Delivery includes: TekDry dehumidifying module with zeolite – DryLogger precision temperature/humidity meter with datalogger and alarm, portable, equipped with calibration certificate, USB cord and LogManager software (Windows) – Grounding cord (2 m).
Accessories (NOT included): Additional shelves, ESD wheels, Tray rack (530×530 mm), Alarm box, Fast recovery module.
Available variations: Version with baking function (40°C).

Benefits

• EASY USE – Plug and play cabinet: just connect it to the main supply and it will be stable at less than 5% RH (this is the guaranteed value, but the cabinet easily reaches 2% RH).
• RELIABLE – The dehumidifier unit works continuously and it is not controlled by any sensor: this system avoids the risk of errors due to malfunctions or hygrometer drifts
• EASY CALIBRATION – Inside every cabinet there is a portable hygrometer, visible through the glass door. You can return it for calibration at anytime and the cabinet will continue to work
• MODULAR STRUCTURE – The dehumidifier modules are easy extractable by means of a screwdriver, allowing easy reparation and granting a long life of the cabinet, over 20 years, as long as the metal structure lasts.

Specifications

• Humidity range: < 5% RH (guaranteed), 2% RH (typical)
• Power supply: 230 Vac
• Structure made of carbon steel 1.2 mm, ESD safe coated
• ESD safe coating (Rs): 10^3 – 10^9 Ω
• Colour: Light Grey (RAL 7035)
• Adjustable feet
• Magnetic handles and sealers
• Grounding cable length: 2 m
• Software requirements: Windows OS.
