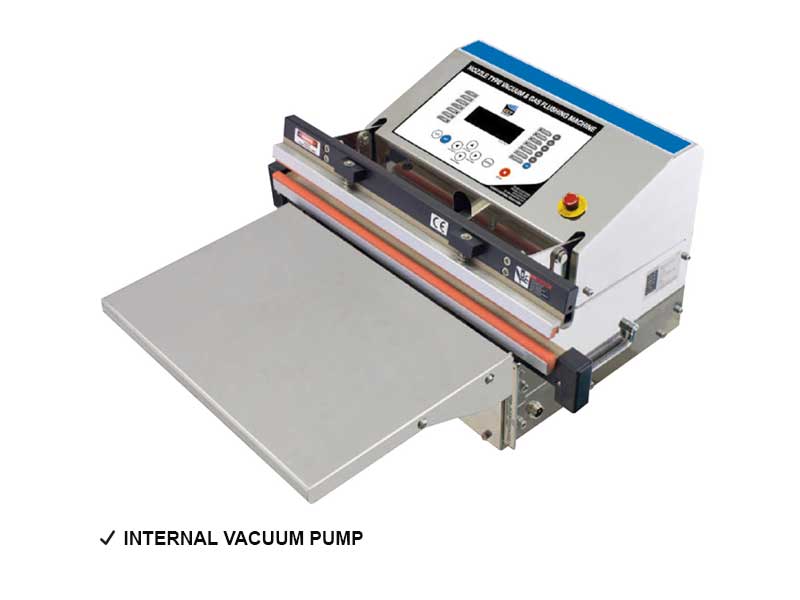

Vacuum sealer with internal pump – 350 mm
Creates a perfect vacuum, quickly and with any kind of bag

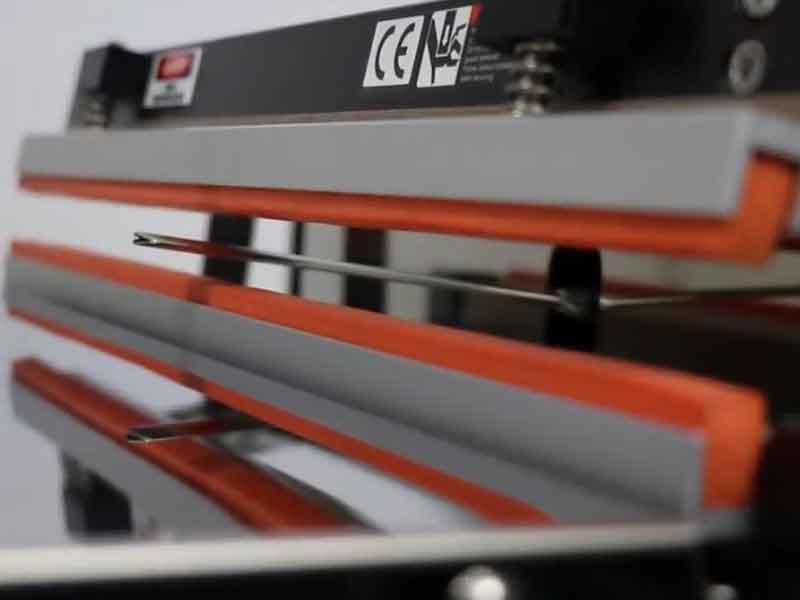

EM350 – High-efficiency vacuum packaging machine with retractile nozzle, 350 mm single sealing bar and built-in motor type pump.

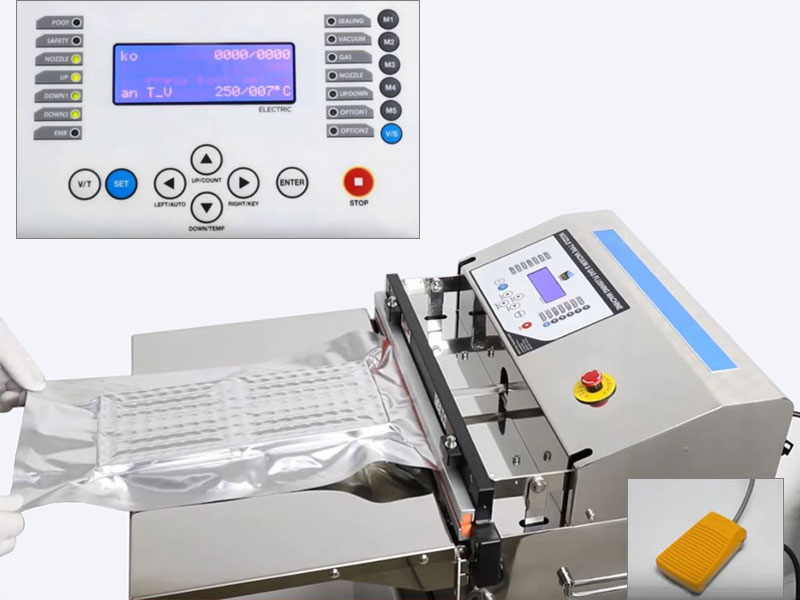

Fully programmable and foot operated.

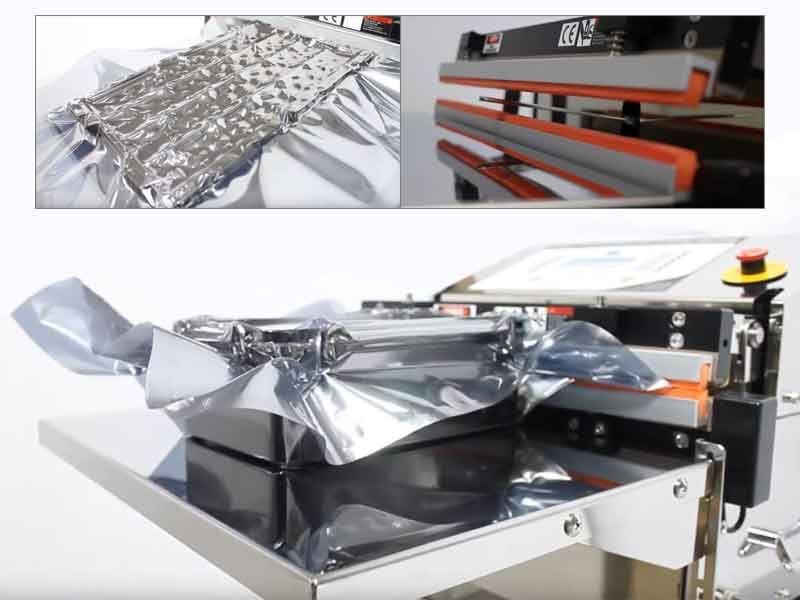

Ideal for small packages in the electronic industry, using ESD barrier bags with thickness up to 90 µm: for bulky packaging, large volumes of work or for vacuum sealing with bags thicker than 120 µm, a model with external compressed air is required.
Different sizes available (Sealing bar): 450 mm (151459L) – 600 mm (151459M).
- Flow rate: 25 L/min.
- Power: 100~230 V, 1 ph, 50/60 Hz (400 VA), DC 24 V
- Power consumption: 1.5 kW (10 mm)
- Dimensions of the sealing bar: 350 x 10 mm
- Dimensions of the machine (WxDxH): 420 x 641 x 290 mm
- Dimensions of the worktop (WxD): 380 x 260 mm
- Functions: Sealing, Vacuum sealing
- Modes: Manual, Automatico, Semiautomatic
- Vacuum sealing settings: Vacuum volume, Vacuum time, Sealing time, Cooling time
- Memory settings: Yes
- Vacuum rate: 80 kpa
- Max. bag thickness for vacuum sealing: 120 µm
- Max. bag thickness for sealing (without vacuuming): 130 µm
- Wide LCD screen (4 lines)
- Indicates error messages on screen
- Certifications: CE.
Sealing and cooling times recommended by the manufacturer:
||~ 80 µm||~ 90 µm||~ 110-130 µm|
|Welding time||0.9 ~ 1.0 sec||1.0 ~ 1.1 sec||1.2 ~ 1.4 sec|
|Cooling time||3.5 ~ 4.0 sec||3.5 ~ 4.0 sec||4.0 ~ 4.5 sec|
Standard supply: Main unit with single sealing bar – Worktop – Footswitch – Supply cable – User manual – Mantainance kit.
Accessories available upon request (NOT included): Double sealing bar – Single/double sealing control – Air washing system kit – Sealing bar protective cover – Adjustable nozzle stroke – Nozzle cleaning kit – Bags printer – External compressor (50 L/min, 100 L/min) – Stand (contains the compressor, if present).
