Description

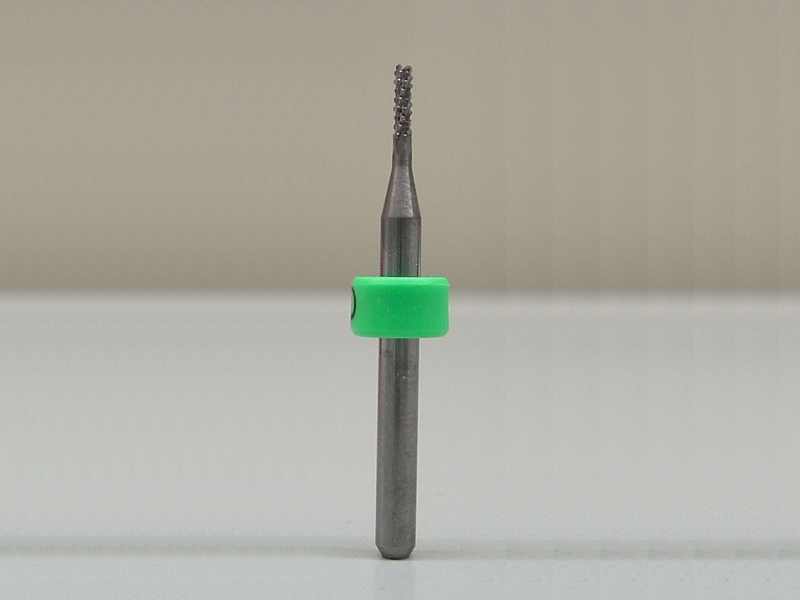

Bungard 81108 – SC/FT type contour router, Ø 0.8 mm.
For PCB routing, spiral shaped teeth, upward swarf ejection, fish tail tipped.
High quality, precisely grinded routing bit. All models of this series are 38 mm long, have a reinforced shank of 3.175 mm and are equipped with a distance ring. The distance from the tip to the upper side of the ring is 21 mm. The ring has a diameter of 7.5 mm and is labeled or color-coded accosding to the diameter. Tools are packaged in resealable plastic boxes.
Specifications
- Diameter: Ø 0.8 mm
- Material: Tungsten carbide.
- Reinforced shaft: 3.175 mm
- Total length: 38 mm.
