Description

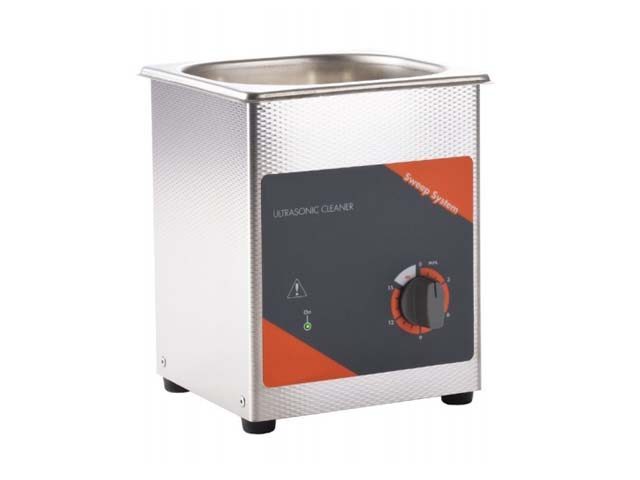

1200 Ultrasonic Cleaner

Ultrasonic cleaner Deluxe line model 1200 made of AISI 304 stainless steel, 1,9L capacity.

The ultrasonic cleaning mechanism consists of an electronic generator coupled to one or more piezoelectric transducers (according to the model) which are attached to the outside base of the tank in stainless steel containing the cleaning fluid.
The electronic ultrasonic generator produces a continuous signal at a frequency about 40 kHz, and pilots the piezoelectric transducers which transform the electrical signal into a mechanical vibration with a frequency of 40,000 oscillations per second in the cleaning fluid in the tank.
This is known as “cavitation” and provides an efficient and safe cleaning method in less time. This high ultrasonic acoustic energy removes dirt, oil, grease, filings, small chips, surface dust, biofilm, organic matter and contamination of various kind from different shaped items.

Available only in:

• M MODEL with mechanical timer 0-5’.

Suggested accessories (NOT included): Basket (El.Mi product Nr.: cestello_dlx), Cover (El.Mi product Nr.: coperchio_dlx).

Technical data

• External sizes: 180 x 165 x 210h mm
• Inner sizes: 150 x 140 x 100h mm
• Weight: 1.8Kg approx.
• Capacity: 1.8L
• Main line voltage: 230/240 V – 50/60 Hz
• Main input power consumption: 80W
• Peak HF Ultrasoud power: 160W
• US frequency: 45 Khz +/- 5%
• Exhaust tap: standard on ETH and EP models (10×8 mm pipe)
• Transducers number: 1

CAUTION: Never use with flammable liquids. Only use liquids with fire point > 90°C.
